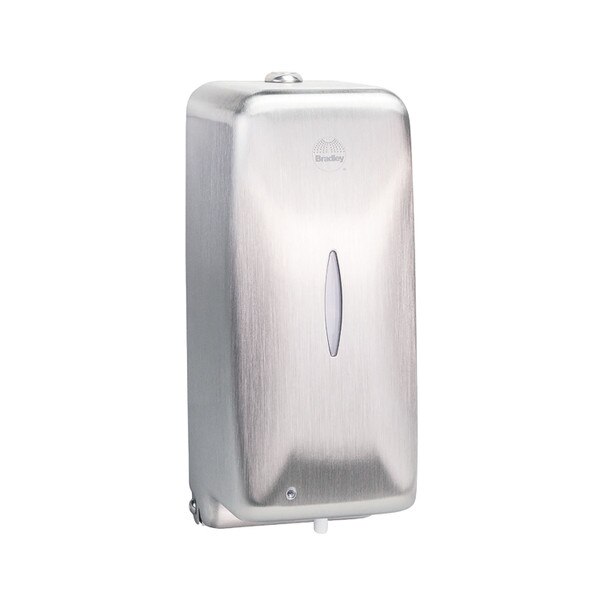

Bradley Diplomat 6A03-110000 Surface Mount Automatic Liquid Soap Dispenser, Stainless Steel, 800ml
 | Redesigned for 2023 with an improved pump mechanism and included with Bradley’s proprietary lock assembly 2055 key |
Diplomat Series Wall mount, stainless steel, automatic soap dispenser. Designed with unique dual-curve geometry. Architectural satin finish. Surface mounted.
Battery operated (4 AA, not included). IR Sensor with 2-3" sensing range. Bulk fill soap tank holds 27 oz. (Approx 800 uses).
Compliant to ADA standards (consult local codes for installation requirements).
Dispenser accommodates liquid soap, liquid hand sanitizer, and/or gel sanitizer
Liquid hand sanitizer must be 70–95% ethanol solution
Viscosity of soap or sanitizer must be between 1 cps–3,000 cps (centipoise)
Capacity is 27 oz (800 ml)
Corrosion-resistant liquid soap/gel sanitizer valve
• Easy to maintain or replace the liquid soap/gel sanitizer pump, P15-549

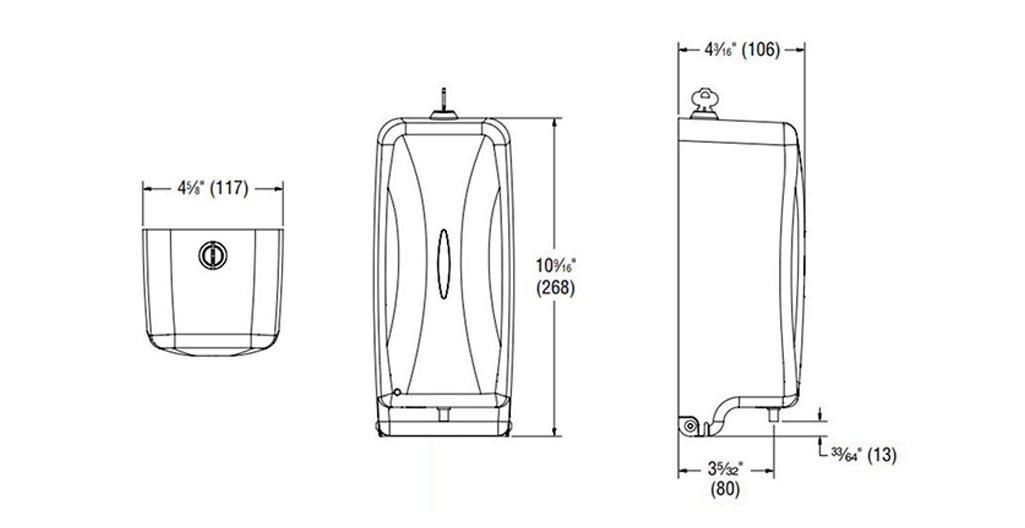

Measurement Diagram:
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red Sensor) Hands-Free |
| Soap Type: | Liquid |
| Capacity: | 27 oz. |
| Material: | Satin Stainless Steel |
| Power: | Requires (4) AA batteries (not included) |
| Overall Dimensions: | 4-5/8"W x 10-9/16"H x 4-3/16"D |
| Net Weight: | 2 lbs. |
| Shipping Dimensions: | 11.25" Width x 5.25" Length x 4.75" Height |
| Shipping Weight: | 3 lbs. |
| Manufacturer Model No.: | 6A03-110000 |
| Country of Manufacture: | Taiwan |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. |
