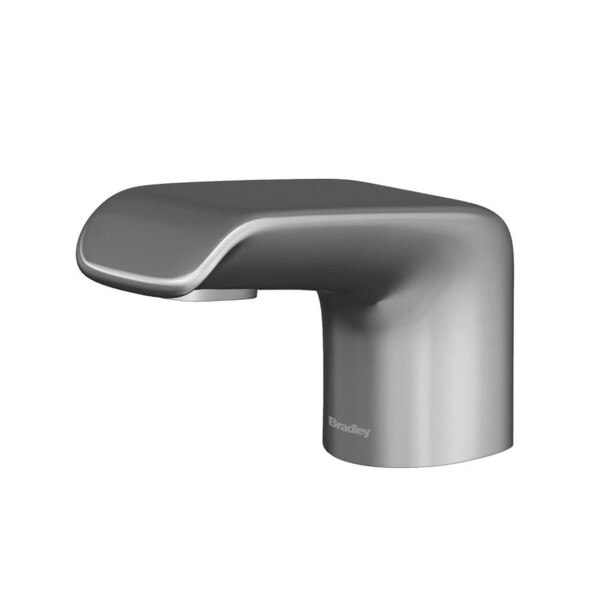

Bradley 6-3500-RLM-PC Verge - Linea - Automatic Deck Mount Soap Dispenser, Liquid, Multi-Feed, Polished Chrome

(0) No Reviews yet
$378.90
SKU: 6-3500-RLM-PC

Ships in 8 business days from the manufacturer.

Please note this product is the Multi-Feed Soap Dispenser ONLY. You will also need to purchase ONE Multi-Feed Soap Tank which can accommodate up to 6 Multi-Feed units. Power supply must also be purchased for each soap dispenser and soap tank.

Verge Multi-Feed Soap Dispenser Linea Series. Pairs with Verge Faucet model S53-3500 in Polished Chrome.

This dispenser is for use with A14-033-PC polished chrome Multi-Feed Tank Assembly system. The 166.5 oz soap tank that can support up to 6 dispensers via a fill port hub on the top of the deck. It is compatible with liquid soap within viscosity range of 100 cps to 5000 cps. Touch-free dual sensor activation optimized to eliminate false activations.

Sleek lines and curved edge design in chrome-plated cast brass construction with Polished Chrome finish. Indicator light at the base of the spout to indicate power, activation and low soap. Vandal-resistant construction including anti-rotational gasket/washer.

Complies with ADA guidelines. Certified UL and CE Electrical Components. Certified ADA / ICC ANSI 117.1, Citation 309.4.

  • IMPORTANT: No power supply is included with this product. Purchase one of the following separately:
    AC Adapter A14-029 -or- Battery Pack A14-030 -or- AC Splitter A14-031 (which accomodates up to 4 devices)
  • Sleek lines and curved-edged design coordinates with Verge™ faucet model S53-3500
  • Smart sense system with LED light indicators that show when soap and battery levels are low
  • Audible and visual alerts aid the refill process to prevent overfilling and spillage
  • Hidden sensors, nozzles and anti-rotation gasket prevent vandalism






Certifications:

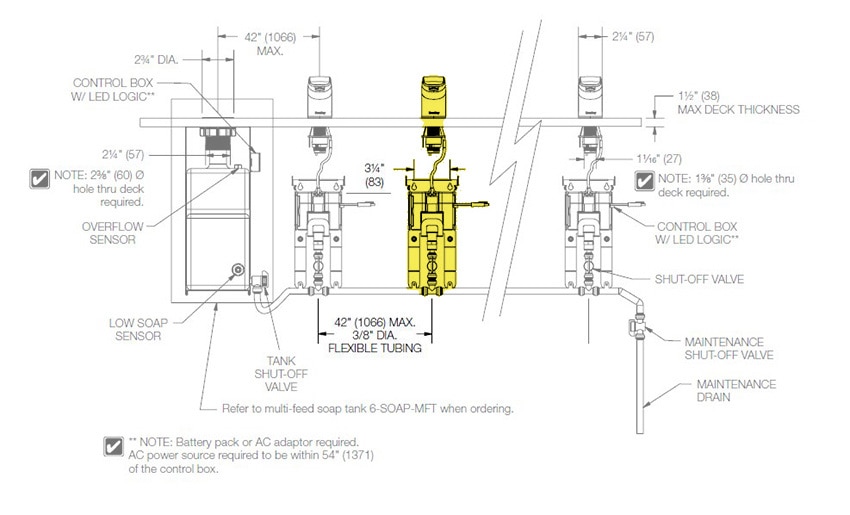

Measurement Diagram:


Brand: Bradley
Manufacturer Model No.: 6-3500-RLM-PC
Soap Type: Liquid
Color Finish: Polished Chrome
Length Inches: 6
Width Inches: 2.25
Height Inches: 4
Weight Lbs.: 3.31
Warranty: 3 Year
Certifications: Complies with ADA guidelines. Certified UL and CE Electrical Components. Certified ADA / ICC ANSI 117.1, Citation 309.4.
Power Supply: NOT Included. Purchase separately. Options include:
AC Adapter A14-029
Battery Pack A14-030
AC Splitter A14-031 (powers up to 4 devices)
Series: Verge - Linea

Warnings:

This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
