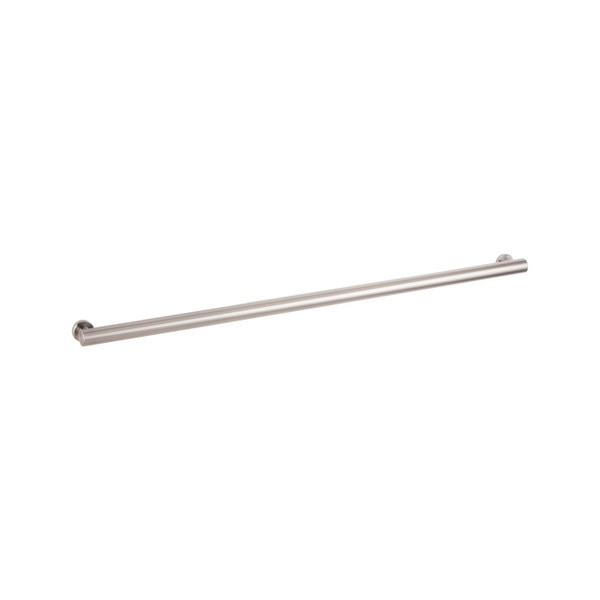

Bobrick B-9806x42 Fino Collection Stainless Steel Grab Bar, Satin Finish, 1-1/2" OD, 42" L, Concealed Mount (Snap Flange)

(0) No Reviews yet
SKU: B-9806x42


6 available for immediate shipment

The Fino line of restroom accessories is normally architecturally specified for locations looking to make a marquee design statement.

These washroom fixtures are manufactured for Bobrick in the UK using a low volume, high-tech, CNC milling technique. The Fino series is made of a stainless steel that has a heavier gauge than other similar restroom accessories. As a result, this craftsman B-9806x42 grab bar is more expensive than other standard, mass-produced grab bars.

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

1½” (38mm) Diameter Stainless Steel Grab Bar with Concealed Flange. ADA/DDA compliant. Modern stylish design. Bobrick grab bars that provide 1-1/2" (38.1mm) clearance from wall can support loads in excess of 1,322lbs (600kgs) if properly installed. Mounting fasteners not included. See mounting kit B-9806-20 (drywall) or B-9806-21 (through bolt type) for Bobrick approved mounting kits.

  • 42“ (1065mm) Rated Length
  • Stainless Steel, Satin Finish

Measurement Diagram:

Type: Straight Grab Bar
Primary Material: Type-303, 14-gauge (2mm) Stainless Steel
Mount Type: Concealed (Snap Flange)
Outside Diameter: 1-1/2"
Rated Width: Not Applicable
Rated Length: 42"
Grip Type: Smooth
Finish / Color: Satin
Load Capacity: Up to 1,333 lbs. (weight dependent on anchoring)
Bariatric: Yes
Antimicrobial: No
Overall Dimensions: 44" Wide x 2" Tall x 3" Deep
Shipping Dimensions: 46" Length x 4" Width x 4" Height
Shipping Weight: 8 lbs.
UPC / GTIN: 716954012029
Manufacturer Model No.: B-9806x42
Country of Manufacture: United Kingdom
Warranty: 1 Yr. Manufacturer's Limited

Architectural Specifications:

Grab Bar shall be stainless steel with satin finish. Grab bar shall have type 303, 14-gauge (2mm) stainless steel tubing. 1" outside diameter. Clearance between the grab bar and the wall shall be 1" (38.1mm). Concealed Mounting Flanges shall be 2/5" (10mm) thick, threaded solid stainless steel with satin finish, 2" (50mm) diameter, equipped with three screw holes for attachment to wall. Flange Covers shall be 1/8" (3mm) thick, threaded solid stainless steel with satin finish. 2" (50mm) diameter and shall conceal the mounting screws. Threaded solid support posts shall have 1/8" (6mm) wall thickness, 1" (25mm) outer diameter securing the flange covers. A metric M8 hex screw, with a curved washer shall connect the grab bar's tube with the flange. Grab bar shall comply with with accessible design (including ADAAG in the USA ) for structural strength.
