Bobrick B-6806x42 Concealed Mtg W/ Snap Flange Grab Bar 42" - 1.5 O.D.
|Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.|

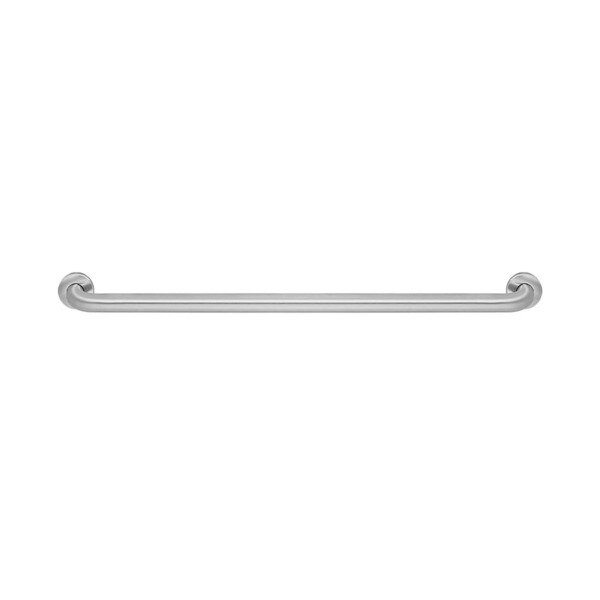

42″ grab bar with 1-1/2″ diameter. Satin-Finish, slip-resistant surface stainless steel grab bar for bath/shower/toilet compartment. Snap Flange. Support loads in excess of 900 pounds.
- 18-8, Type-304, 18-gauge (1.2mm) stainless steel tubing with a satin-finish, slip-resistant surface
- 1-1/2" (38mm) outside diameter. Ends are heliarc welded to concealed mounting flanges
|Type:||Straight Grab Bar|
|Primary Material:||Stainless Steel|
|Mount Type:||Concealed (Snap Flange)|
|Rated Width:||Not Applicable|
|Finish / Color:||Satin|
|Load Capacity:||Up to 900 lbs.|
|Overall Dimensions:||45-1/8" Wide x 3-1/8" Tall x 3" Deep|
|Shipping Dimensions:||46" Length x 4" Width x 4" Height|
|Shipping Weight:||4.2 lbs.|
|UPC / GTIN:||716954003669|
|Manufacturer Model No.:||B-6806x42|
|Country of Manufacture:||USA|
|Warranty:||1 Yr. Manufacturer's Limited|

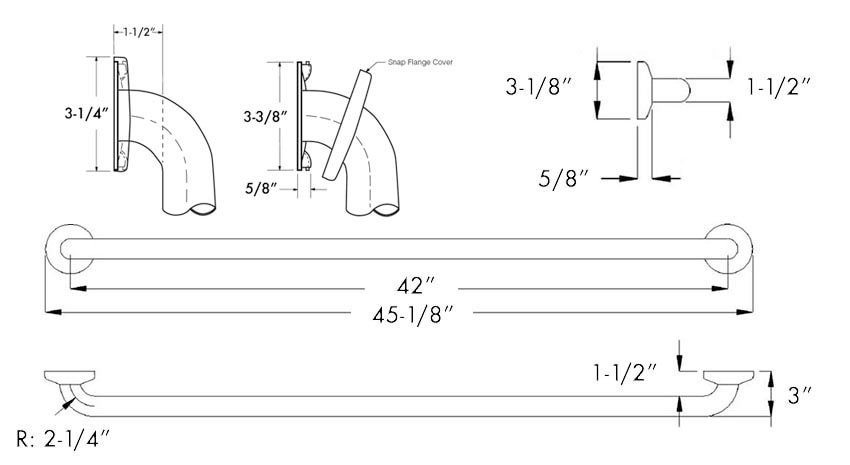

Grab bar shall be type-304 stainless steel with satin-finish, slip-resistant surface. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1-1/2" (38mm) outside diameter. Clearance between the grab bar and wall shall be 1-1/2" (38mm). Concealed mounting flanges shall be 11-gauge (3.2mm) thick stainless steel plate, 2" x 3-1/8" (50 x 80mm), and equipped with at least two screw holes for attachment to wall. Flange covers shall be 22 gauge (0.8mm), 3-1/4" (85mm) diameter x 1/2" (13mm) deep, and shall snap over mounting flange to conceal mounting screws and/or WingIt fasteners. Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit. Grab bar shall comply with accessible design (including ADAAG in the U.S.A.) for structural strength.
