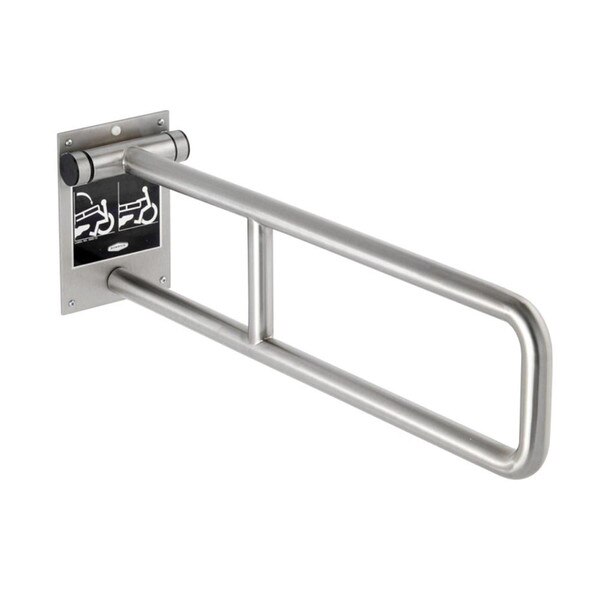

Bobrick B-4998.99 Satin Stainless Steel, Peened Swing-Up Grab Bar
 | Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. |
32 mm (1 - 1/4″) diameter tubing. Peened grip area. Satin-Finish, slip-resistant surface stainless steel grab bar for bath/shower/toilet compartment. Exposed mounting.
18-8, Type-304, 18-gauge (1.2mm) stainless steel tubing with satin finish. 1–1/4" (32mm) outside diameter. Ends are heliarc welded to fl anges.
Mounting fasteners are NOT included.

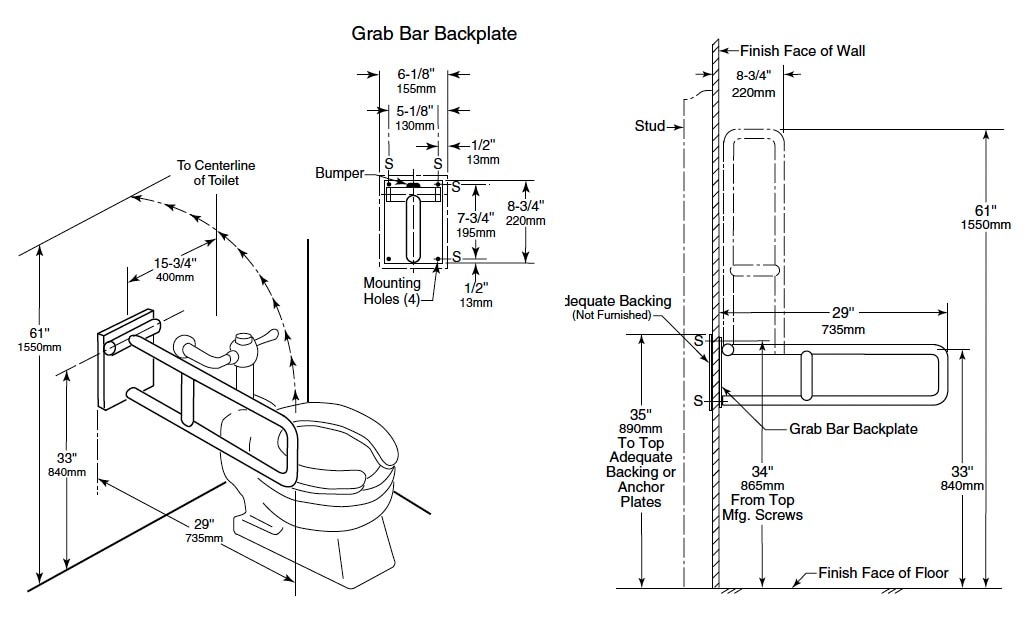

Measurement Diagram:
| Type: | Swing-Up Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Exposed |
| Outside Diameter: | 1-1/4" |
| Rated Width: | Not Applicable |
| Rated Length: | 29" |
| Grip Type: | Peened |
| Finish / Color: | Satin |
| Load Capacity: | Up to 500 lbs. |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 29" Wide x 8-3/4" Tall x 6-1/8" Deep |
| Shipping Dimensions: | 9" Length x 36" Width x 6-4/5" Height |
| Shipping Weight: | 10.3 lbs. |
| UPC / GTIN: | 716954002587 |
| Manufacturer Model No.: | B-4998-99 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Grab bar shall be Type-304 stainless steel with satin finish. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1–1/4" (32mm) outside diameter. Backplate shall be 3/16" (5mm) thick stainless steel, equipped with screw holes for attachment to wall. Swing-up grab bar shall be manually raised for approach or departure and lowered to horizontal position for support; counterweighted design shall prevent grab bar from falling back down to the full horizontal position once grab bar is raised to the full upright (vertical) position.
