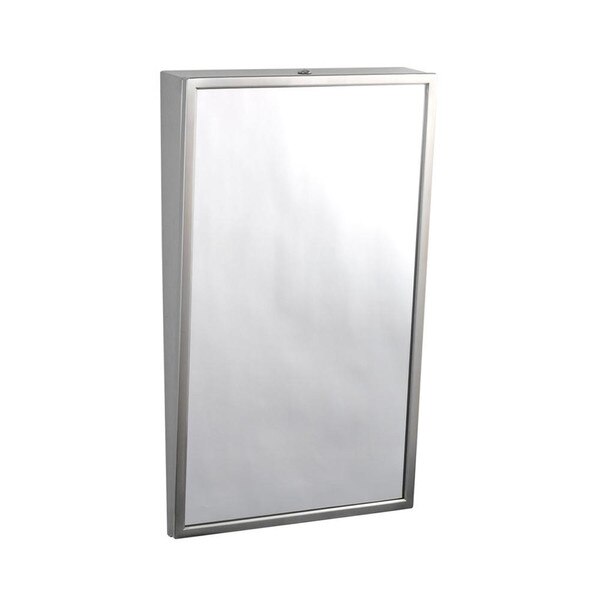

Bobrick B-293-1836 Satin Stainless Steel, Float Glass, 18" by 36", Fixed-Position Tilt Mirror
Details
 | Top extends 4" away from the wall and gradually decreases down to 1" out at the bottom. |
Provides visibility for wheelchair patients. Frame is type-304 stainless steel, satin finish. Beveled edges of frame hug mirror; provides gapless fit for improved appearance, and safety when cleaning mirror. No. 1 quality, 1/4″ (6mm) glass mirror; warranted against silver spoilage for 15 years. Mirror extends 4″ (100mm) from wall at top and tapers to 1″ (25mm) at bottom. Patented.
Measurement Diagram:
Specs
| Brand: | Bobrick |
| Manufacturer Model No.: | B-293 1836 |
| Mount: | Fixed Tilt |
| Frame Material: | Satin Stainless Steel |
| Frame Type: | Angle Frame (Welded Corners) |
| Glazing: | 1/4" Float Glass |
| Overall Dimensions: | 18" Wide x 36-3/16" Tall x 4-3/8" Deep |
| Shipping Dimensions: | 40" Length x 22" Width x 6" Height |
| Shipping Weight: | 27.8 lbs. |
| UPC / GTIN: | 716954001399 |
| Country of Manufacture: | USA |
| Warranty: | 15 Yr. Against Silver Spoilage |
Architectural Specifications:
Tilt mirror assembly shall consist of a mirror and a separate wall frame with built-in wall hanger. Wall frame furnished with tumbler lock for securing mirror to wall frame. Tilt mirror frame shall be type 304 stainless steel with beveled front to hold frame tightly against mirror; corners shall be welded, ground, and polished smooth. Wall frame shall be type 304 stainless steel designed with horizontal locking bars to secure mirror to wall frame. All exposed surfaces shall have satin finish with vertical grain. Select float glass mirror shall be guaranteed for 15 years against silver spoilage. All edges shall be protected by plastic filler strips. Back shall be protected by full-size, shock-absorbing, waterresistant, nonabrasive, 1/8" (3mm) thick polystyrene padding.
