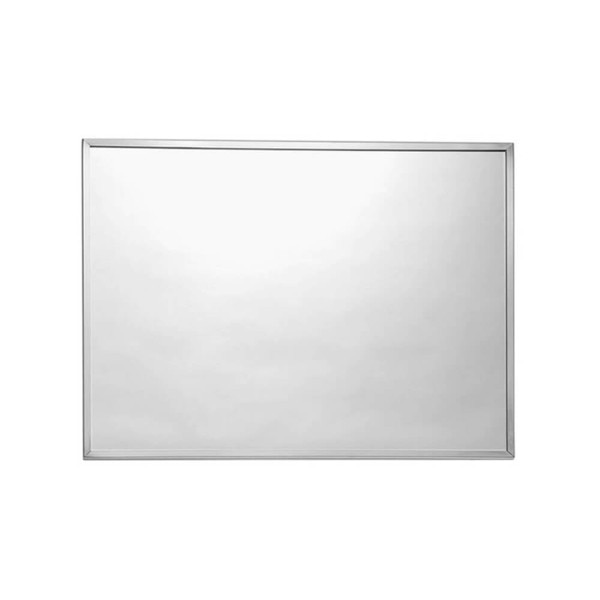

Bobrick B-165-4836 Bright Polished, Stainless Steel, Channel Frame, Float Glass, 48" by 36" Mirror
One-piece, 1/2″ x 1/2″ x 3/8″ (13 x 13 x 9.5mm) channel-frame. Type-430 stainless steel with bright-polished finish. Mitered corners. Frame screw permits easy replacement of glass. No. 1 quality 1/4″ (6mm) glass mirror. Mirror is warranted against silver spoilage for 15 years. Galvanized steel back. Secured to concealed wall hanger with theft-resistant mounting.
Measurement Diagram:
| Brand: | Bobrick |
| Manufacturer Model No.: | B-165 4836 |
| Mount: | Flat |
| Frame Material: | Polished Stainless Steel |
| Frame Type: | Channel Frame |
| Glazing: | 1/4" Float Glass |
| Overall Dimensions: | 48" Wide x 36" Tall x 3/4" Deep |
| Shipping Dimensions: | Not Published |
| Shipping Weight: | 57 lbs. |
| UPC / GTIN: | 716954000187 |
| Country of Manufacture: | USA |
| Warranty: | 15 Yr. Against Silver Spoilage |
Architectural Specifications:
Mirror shall have a one-piece type-430 stainless steel channel frame, with 90° mitered corners; all exposed surfaces shall have bright polished finish. Select float glass mirror shall be guaranteed for 15 years against silver spoilage. The back shall be protected by full-size, shock-absorbing, water-resistant, nonabrasive, polyethylene padding. Galvanized steel back shall have integral horizontal hanging brackets located at top and bottom for mounting on concealed wall hanger to prevent the mirror from pulling away from the wall. Locking devices secure mirror to concealed wall hanger. Mirror shall be removable from the wall.
