  • Bobrick TerraDry (B-7188) High Speed Narrow Profile, Automatic Hand Dryer, 110-120V, Chrome

Bobrick TerraDry (B-7188) High Speed Narrow Profile, Automatic Hand Dryer, 110-120V, Chrome

(0) No Reviews yet
SKU: B-7188-120


13 available for immediate shipment

The QuietDry series of hand dryes is ULTRA QUIET - 69 dB or less!

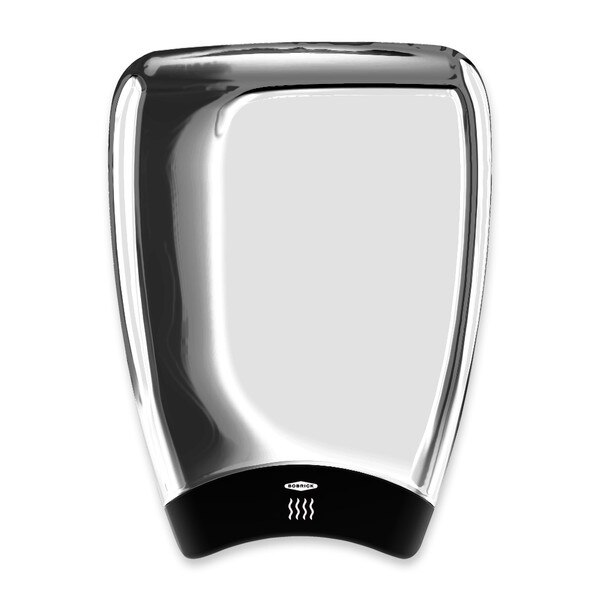

The TerraDry is the latest Bobrick ADA compliant, ultra-slim hand dryer housed in a stunning new design. 4" projection compies with ADA guidelines without the necessity of recess mounting. Touch free infra-red sensor helps minimize the spread of germs through contact. Sturdy die cast aluminum cover with polished chrome finish. The wide nozzle configuration allows for quick dry time with only 69 dBA sound level!

  • 15-18 Second dry time

  • Beautifully styled modern look.

  • 10 year Bobrick limited manufacturer's warranty

  • Less than 4" depth for ADA sight impaired guidelines

  • Integraged ABS vandal resistant grill & wide outlet for comfortable use.

  • Automatic operation with a 90 second safety shut-off

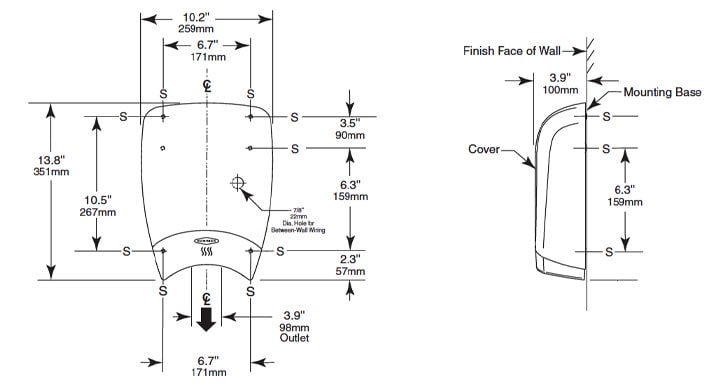

Measurement Diagram:

Activation: Automatic (infra-red), 90 second safety shut-off
Mount: Wall Mount / Surface Mount
Cover: One-piece, aluminum die-casting with polished chrome plating applied
Cycle Time: Not applicable Dryer stops when hands are removed.
Nozzle: Integrated black ABS vandal resistant grill & wide outlet.
Power: 110-120V, 1000 Watts (8.4A), 50/60Hz
Motor: Universal, 1/7 hp, 8000 rpm, on resilient mounting.
Sealed ball bearing at drive-shaft end and self lubricating
sleeve bearing at non-drive end.
Fan: Single-inlet forward-curve impeller.
Airspeed: 71 CFM
Heating Element: Coiled Nichrome heating element, protected by integral automatic thermal overload device. Located on fan inlet, to heat air without hot spots.
Filter: None
IP Rating: Not published
Product Dimensions: 10-1/8" Wide x 13-3/4" Tall x 3-15/16" Deep
Shipping Dimensions: 15" Length x 11-1/2" Width x 5" Height
Shipping Weight: 9.3 lbs.
UPC / GTIN: 716954012753
Manufacturer Model No.: B-7188-120
Country of Manufacture: China
Warranty: 10 Year Bobrick Limited Warranty (3 Years on Motor Brushes)
