  • ASI Piatto™ 10-6474-41 Recessed Waste Receptacle, Matte Black

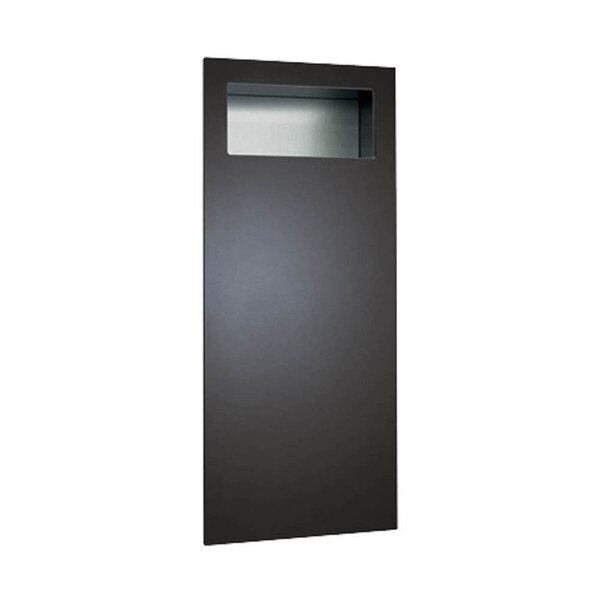

ASI Piatto™ 10-6474-41 Recessed Waste Receptacle, Matte Black

(0) No Reviews yet
$1,024.05
SKU: 10-6474-41

Ships in 35 business days from manufacturer.

Completely FLUSH mount. No projection!

This sophisticated waste receptacle is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.


  • Waste receptacle holds 12 gal. (46 L) of washroom waste materials



Certifications:

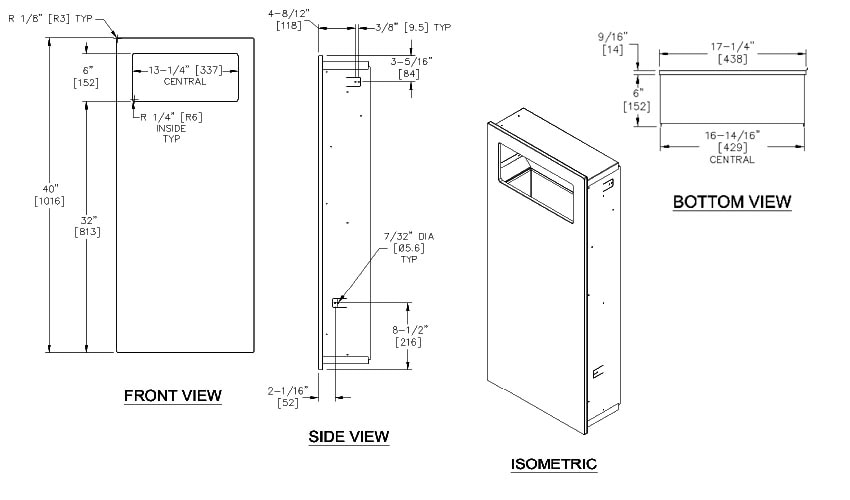

Measurement Diagram:


Alternatives:

Need it in White? See ASI Piatto® 6474-00 .

Need an integrated paper towel dispenser with your trash bin? See the ASI Piatto® 6462-41 2-in-1 .





Type: Recessed Waste Bin
Installation Type: Wall / Fully Recessed
Facia (Door): Matte Black Phenolic
Cabinet Material: Stainless Steel
Capacity: 12 Gallons
ADA Compliant: Yes
Product Dimensions: 17-1/4" Wide 40" Tall 6-3/4" Deep
Net Weight: Approx. 51.1lbs.
Shipping Weight: 55.1 lbs.
Manufacturer Model No.: 6474-41
Made In: USA
Warranty: 1 Yr. manfuacturer's limited warranty

Architectural Specifications:

Piatto™ Collection Waste Receptacle shall have a waste capacity of 12 gallons (46 liters). Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black or white outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with three (3) zero-clearance concealed cabinet hinges and shall be held closed with a springpin L-latch. Structural assembly of all components shall be of welded construction. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.



Product Group Variations:
