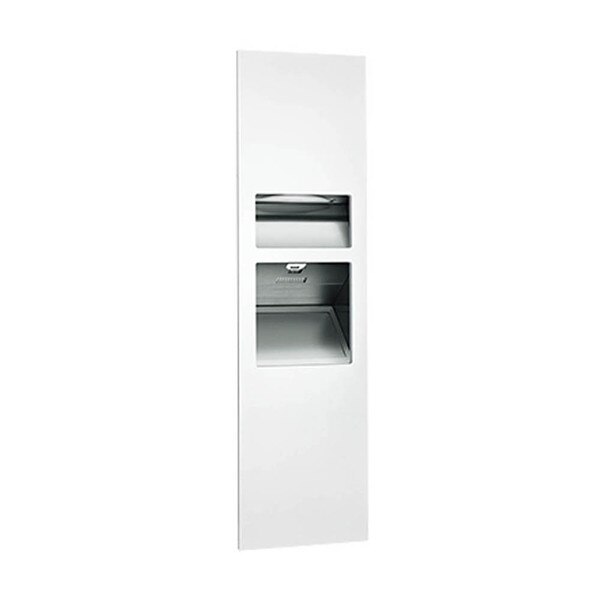

ASI Piatto™ (10-64672-1-00) Dryer, Towel Disp & Waste Bin, Wht, 120V

(0) No Reviews yet
SKU: 10-64672-1-00

This product will ship from the manufacturer in 38 days.

Completely FLUSH mount. No projection!

This sophisticated 3-in-1 cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

  • Holds and dispenses 500 standard multi-fold or 400 standard C-fold paper towels.

  • <15 second automatic hand dryer with a 5-year warranty

  • 110-120V

  • Waste Receptacle has a waste capacity of 6.8 gal (26 L)

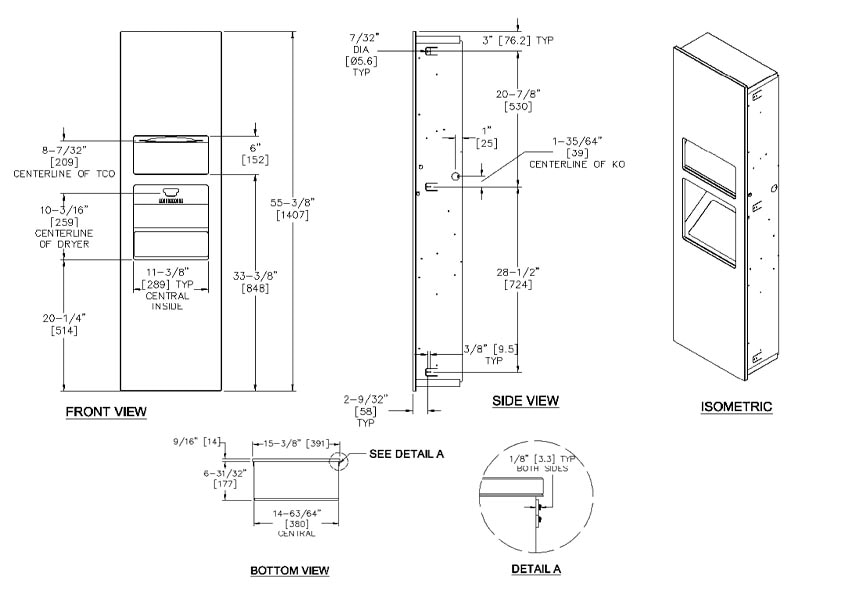

Measurement Diagram:


Need it in Black? See ASI Piatto® 64672-1-41 .

Need the High Voltage (208-240V) version? See the ASI Piatto® 64672-2-00 3-in-1 .

Type: Three-in-One (Hand Dryer, Paper Towel Dispenser, Waste Bin)
Installation Type: Wall / Fully Recessed
Facia (Door): White Phenolic
Cabinet Material: Stainless Steel
Dryer Type: High speed, Automatic (Heated)
Capacity: Paper Towels: 400 C-Fold (500 Multi)
Waste: 6.8 Gallons
Power: 110-120V (Standard), 800-1200 Watts
ADA Compliant: Yes
Product Dimensions: 15-3/8" Wide 55-3/8" Tall 7-1/2" Deep
Net Weight: Approx. 88lbs.
Shipping Weight: 92 lbs.
Manufacturer Model No.: 64672-1-00
Made In: USA
Warranty: Dryer: 5 Yr. manfuacturer's limited warranty
Cabinet: 1 Yr. manfuacturer's limited warranty

Architectural Specifications:

Piatto™ Collection Three-in-One Paper Towel Dispenser with Waste Receptacle and Automatic Electric Hand Dryer shall hold and dispense 500 standard multi-fold or 400 standard C-fold paper towels, and shall have a waste capacity of 6.8 gallons (26 liters). Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Waste receptacle shall have piano-hinge mounted closed top with spring-hinge closed flap door and hemmed edges for safety. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black or white outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with four (4) zero-clearance concealed cabinet hinges and shall be held closed with a spring-pin L-latch. Structural assembly of all components shall be of welded construction. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.
