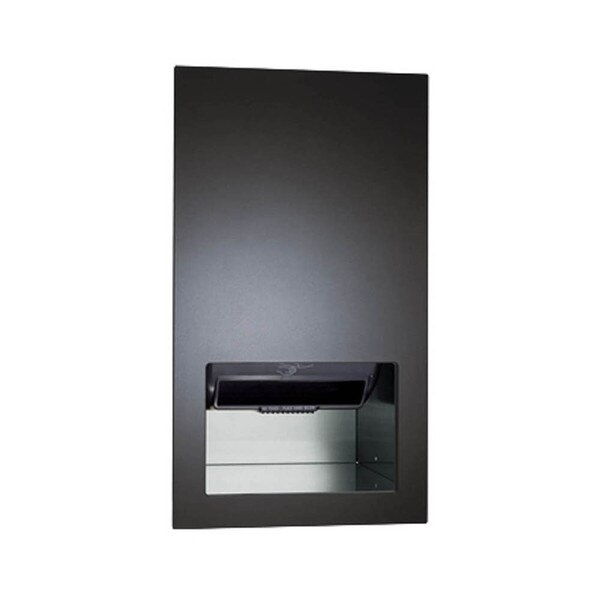

ASI Piatto (10-645210AC-41) Recessed Auto Towel Disp, Black, 120V
 | Completely FLUSH mount. No projection! |
This sophisticated automatic paper towel dispenser is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal. Proximity sensing no-touch unit holds and dispenses one 8" diameter [Ø203] x 8" wide [203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged.
Dispenser is powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied)
110- 240VAC, 50/60 Hz, output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone
Certifications:

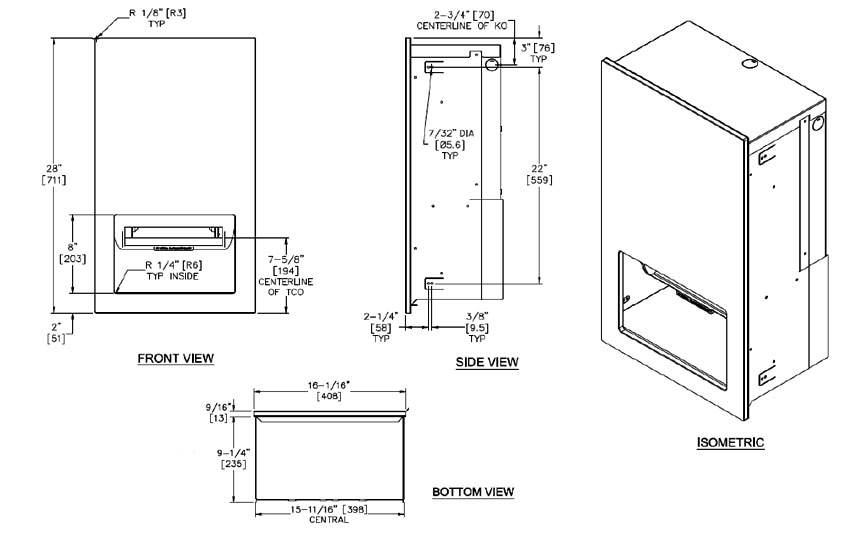

Measurement Diagram:
Alternatives:
Need it in White? See ASI Piatto® 645210AC-00 .
Want the same unit, but using batteries instead of AC power? See the ASI Piatto® 6465210A-41 2-in-1 .
| Type: | Paper Towel Dispenser |
| Installation Type: | Wall / Fully Recessed |
| Facia (Door): | Matte Black Phenolic |
| Cabinet Material: | Stainless Steel |
| Capacity: | Paper Towels: 1 Std Commercial-Type PT Roll plus 4" Stub Roll |
| Power: | AC Adapter Provided |
| ADA Compliant: | Yes |
| Product Dimensions: | 16-1/16" Wide 29" Tall 9" Deep |
| Net Weight: | Approx. 35lbs. |
| Shipping Weight: | 38 lbs. |
| Manufacturer Model No.: | 645210AC-41 |
| Made In: | USA |
| Warranty: | 1 Yr. manfuacturer's limited warranty |
Architectural Specifications:
Piatto™ Collection Automatic Paper Towel Dispenser shall hold and dispense one 8" wide [203] x 8" Dia. [Ø203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" Dia. [Ø102] and shall automatically change over to main roll when finished with stub roll when feed tabs are properly engaged. Automatic Touchless Roll Towel Dispenser shall be powered by C-UL-US and CE approved internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz and providing output of 6VDC @ 2A and shall operate automatically to activate towel dispensing when hands are placed in sensor zone from 1/2" [13] below sensor to 4-1/2" [114] below sensor. At each activation unit shall feed out a length of towel selected by owner by setting length, delay and paper saver switches. Unit shall have an internal towel cut-off bar. Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black (Formica 909-58) or white (Formica 949) outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with two (2) zero-clearance concealed cabinet hinges and shall be held closed with a spring-pin L-latch. Structural assembly of all components shall be of welded construction. Door, latch and hinges shall be attached with concealed Philips head screws. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.
Product Group Variations:
