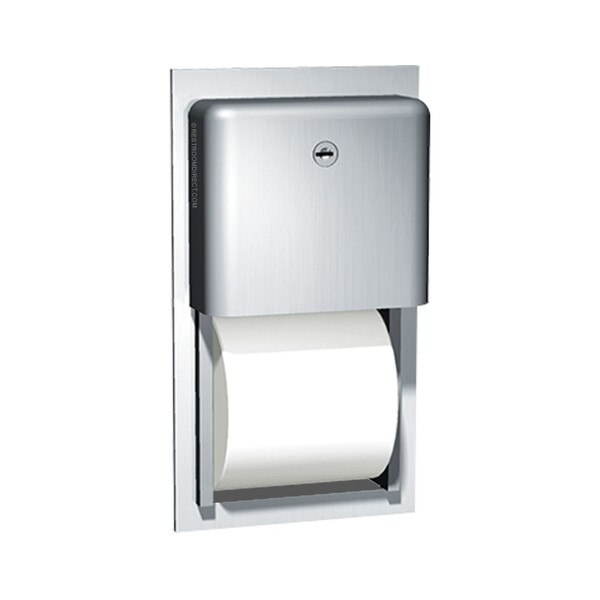

ASI (10-9031) Stainless Steel Toilet Tissue Dispenser, Dual Roll, Recessed, Locking
Type 304 stainless steel cabinet and mechanism for theft-resistant spindles holds 2 rolls up to 5-1/4″ (135mm) diameter (1800 sheets); the top roll automatically drops in place when the bottom roll is used up.
| Type: | Standard 2 roll (Hide-a-roll) |
| Mount: | Wall / Recessed |
| Primary Material: | Stainless Steel |
| Capacity: | 2 Standard Toilet Paper Rolls (4-1/4" W x 4-1/2" Dia.) |
| Locks: | Yes |
| Overall Dimensions: | 8" Wide x 14" Tall x 6-1/4" Deep (Projects 2-7/8" from wall. |
| Rough-In: | 6-1/4" Wide x 12-1/4" Tall x 3-3/8" Deep |
| Net Weight: | 8.1 lbs. |
| Shipping Dimensions: | 15" Length x 9" Width x 7" Height |
| Shipping Weight: | 8.4 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Mounting fasteners not included. |
Architectural Specifications:
Profile Collection Semi-Recessed Mounted Twin Hide-A-Roll Toilet Paper Dispenser shall hold and dispense two (2) standard or two (2) 5-1/4" Dia [Ø133] 1800 sheet paper rolls and shall have door, door frame, and dispensing mechanism guide tracks 18 gage [1,3] type 304 stainless steel alloy 18-8. Cabinet body shall be 22 gage [0,8] same grade. All exposed surface shall be satin finish and be protected during shipment with PVC film easily removable after installation. Internal mechanism levers shall be molded high-impact resistant plastic for smooth operation. Structural assembly of body and door components shall be welded construction. Door hinges shall be heavy-duty stainless steel 3/16" Dia [Ø4,8] rivets. Door shall have 3/4" [19] rounded vertical edges with all corners welded and ground smooth with no open miters and shall be held closed with a flush rimless tumbler lock keyed alike to other ASI washroom equipment. Cabinet shall include two (2) theft and vandal resistant rollers (p/n R-004) that are molded high-impact resistant plastic with integral molded-in plated steel endpins.
