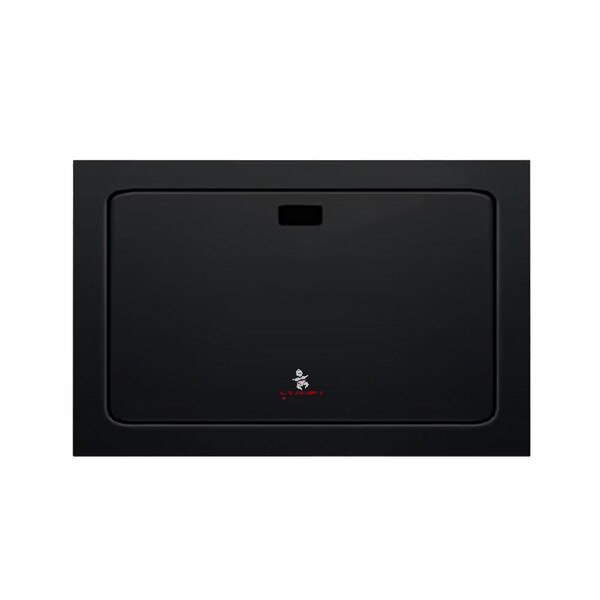

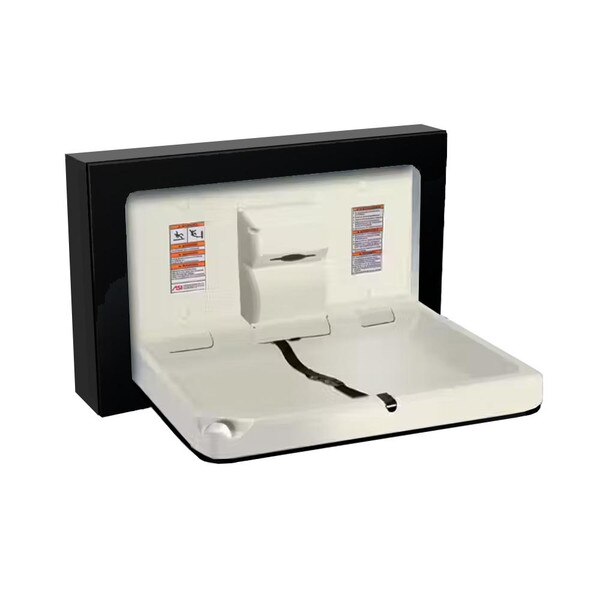

ASI (10-9018-9-41) Fold Down Surface Mount Baby Changing Station, Black Stainless Steel, Horizontal
|This product ships LTL on a pallet via freight service.|
This horizontal station has a door facing and collar made from 18 gauge 304 stainless steel with a powder coated matte black finish. Fabricated of FDA-approved fungus and bacteria-resistant plastic. Unit complies with 2010 ADA Accessibility Standards and supports a static load of 300 lbs. (136 kg) and be tested in excess of 350 lbs. (159 kg).
NOTE: While it has been tested for durability with higher loads, this product is intended only for use with children up to 3-1/2 years and 50 lbs.
Built-in sanitary bed liner dispenser with view slot to indicate low liner/towel stack condition
Includes two integral heavy-duty bag hooks clearly marked with international-style symbols
Adjustable two-part child protection safety-strap and cam buckle adjustable with one hand.
Rounded contoured pull handle and concealed damped gas spring to assist user in opening and closing unit with one hand
Mounts on standard stud wall dimensions and with proper anchoring may mount on all suitable wall constructions
Five (5) years warranty against defects in material or workmanship.
|Manufacturer Model No.:||10-9018-9-41|
|Mount:||Wall / Surface|
|Cover / Color:||Stainles Steel, Black Powder Coat|
|Bed Material:||FDA approved, non-porous HDPE|
|Static Load:||Up to 300 lbs.|
|Live Load:||Up to 50 lbs. including child and parcels|
|Mechanism:||Damped gas spring to assist user in opening and closing bed tray with the use of one hand.|
|Safety Belt:||Non-porous, vinyl coated djustable two-part child protection safety-strap for easy sanitation and one handed operation.|
|Liner Dispenser:||Bed-liner dispenser that may be easily converted to a multi-fold towel dispenser with no adapters.|

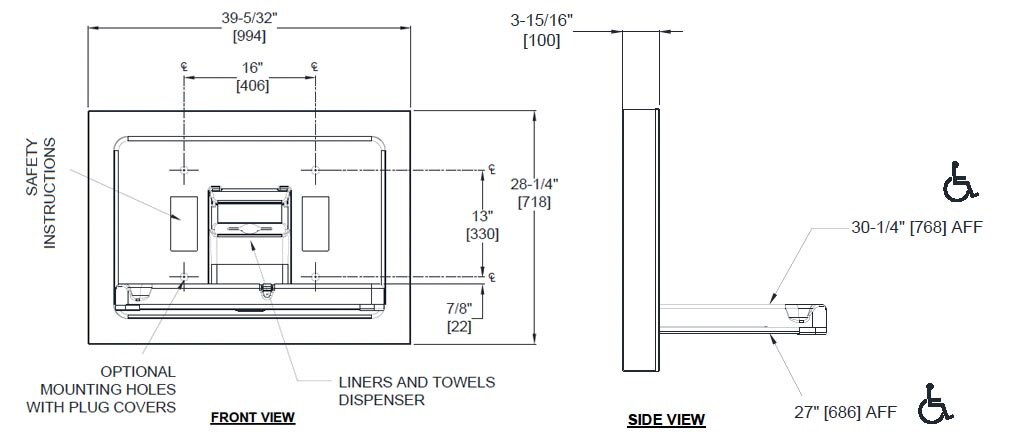

|Product Dimensions (Closed):||28-1/4" Tall x 39-5/32" Wide x 3-15/16" Deep|
|Product Dimensions (Open):||28-1/4" Tall x 39-5/32" Wide x 22-1/16" Deep|
|Net Weight:||25 lbs.|
|Shipping Dimensions:||43" Length x 32" Width x 5" Height|
|Shipping Weight:||27 lbs.|
|UPC / GTIN:||Not published|
|Country of Manufacture:||US|
|Warranty:||5 Yr. Manufacturer's|
Surface Mounted Stainless Steel Horizontal Baby Changing Station shall protrude no more than 4"  from wall when in retracted position. Unit shall comply with 2010 ADA Accessibility Standards, ASTM F2285-04, and EN 12221-1. Unit shall support a static load of 300 lbs (136,1 kg) and be tested in excess of 350 lbs (158,8 kg). Unit shall be fabricated of non-porous plastic (FDA approved HDPE) tested according to ASTM G21 and ASTM G22. Unit shall contain a door facing and wall flange dress trim of satin finish (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №) 18 gauge [1,2] type 304 stainless steel. Unit shall contain a surface mounting collar made from satin finished 22 gauge [0,8] type 304 stainless steel. No parts of the operating mechanism shall be accessible when unit is open or closed to provide a tamper-resistant and pinch proof user environment. Unit shall have a damped gas spring to assist user in opening and closing bed tray with the use of one hand. Unit shall be provided with one integral heavy-duty bag hook. Unit shall provide a bed-liner dispenser that may be easily converted to a multifold towel dispenser with no adapters. Unit shall provide graphics and instructions in four languages on interior back. Unit shall be provided with an adjustable two-part vinyl coated child protection safety-strap mounted with concealed fasteners on high walls of cradle. Entire unit shall be assembled of completely sealed components to provide easy cleaning and no penetration zones to harbor microbes or bacteria. Unit shall mount on standard stud wall dimensions and with proper anchoring may mount on all suitable wall constructions. Mounting fasteners shall be concealed after installation using color matched recess plug-covers supplied. Unit bed tray and back shall be light grey in color and entire unit shall be recyclable at end of usable life. Unit shall be warranted for five (5) years against defects in material or workmanship.
