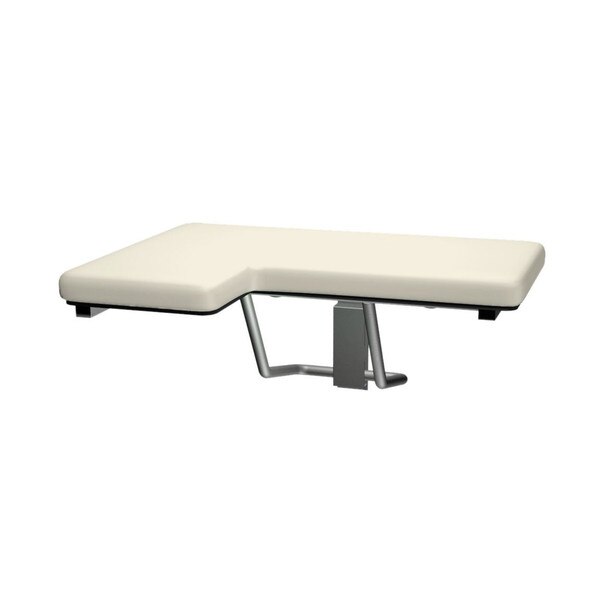

ASI (10-8205-R) Folding Shower Seat, L-Shaped, Right Hand Orientation, Padded Naugahyde, ADA

(0) No Reviews yet
SKU: 10-8205-R


7 available for immediate shipment

(Right Hand) Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly. Seat is ½” (13 mm) thick, one piece solid, white colored, black core phenolic. Right hand seat with cushion covered in off-white Naugahyde®. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Phenolic seat ONLY is field reversible. Seat measures 33″ (838 mm) wide and projects 22-7⁄8″ (581 mm) from wall.

Seat Material: Sponge cushion covered with off-white Naugahyde®
Frame Material: 18 Gauge Type 304 Stainless Steel, 18-8 Alloy
1" Dia. Tubing
Operation: Fold Up
Load / Capacity: Tested to 1000 lbs.
250 lbs. Max Capacity
Overall Dimensions: OPEN: 33" Wide x 23" Deep (Top, when mounted, 17-19" from floor)
CLOSED: 33" Wide x 6" Deep (Top, when mounted, 34-3/8 -36-3/8" from floor)
Seat size: 33" Wide x 23" Deep x 1-3/4" Thick
Net Weight: 18 lbs.
Shipping Dimensions: 36" Length x 24" Width x 8" Height
Shipping Weight: 20.7 lbs.
Warranty: 1 Year Manufacturer's Limited
Comments: Fold-up Shower Seat requires only one hand operation to manually lower to horizontal position for use or raise for departure and arrival. Guide bracket with spring detent prevents seat from dropping and provides positive support in usage position as well as spring locked storage position.

Architectural Specifications:


L- shaped Fold-up Padded Shower Stall Seat shall have all metal parts fabricated of 18-8 stainless steel type 304; seat frame and support legs shall be 1" diameter (Ø25) and 1-1/4" (32) square x 18 gauge (1.2) tubing with 3/16" (4.8) thick mounting flanges and 16 gauge (1.5) guide bracket/arm support. All exposed surfaces shall have No 4 satin finish. Structural assembly shall be of welded construction. All exposed edges and corners shall be radiused and/or deburred. Seat shall be sponge cushion covered with off-white Naugahyde® mounted on 1/2" (13) thick marine grade plywood. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating position. Unit shall satisfy ADA Accessibility Guidelines when properly installed.
