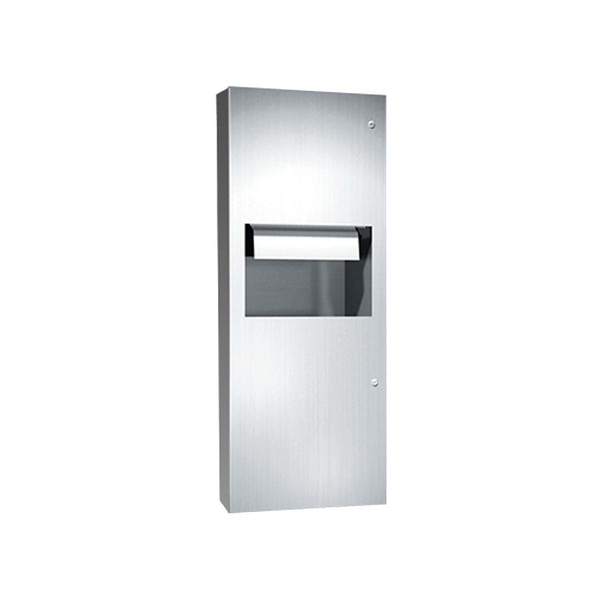

ASI (10-64696A-6) Semi-Recessed Automatic Paper Towel Dispenser & Waste Receptacle, 9.9 Gal.
Proximity sensing no-touch unit holds and dispenses one 8″ diameter [Ø203] x 8″ wide [203] standard towel roll up to 800 ft. (244m) long and one 8″ wide [203] stub roll up to 4″ diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Waste receptacle has a capacity of 9.9 gallons (37.3 L).
Semi-recessed with stainless steel collar.
Powered by four (4) D-size batteries (not supplied) and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.
| Cover Material: | Type 304 Stainless Steel Alloy 18-8 |
| Mount: | Wall / Recessed |
| Operation: | Automatic (Hands-Free) Sensor Activated |
| Power: | 4 "D-Cell" Batteries (not included) |
| Capacity: | "One 8"" Dia., 8"" Wide Roll One 4"" Dia., 8"" Wide Stub Roll" |
| Waste Bin Capacity: | 9.4 Gal. |
| Overall Dimensions: | 16-1/16" Wide x 41-1/4" Tall x 9-3/8" Deep (Projects 8" out from wall.) |
| Rough-In: | 14-5/8" Wide x 39-3/4" Tall x 8-7/8" Deep |
| Net Weight: | 43 lbs. |
| Shipping Dimensions: | 44" Length x 18" Width x 11" Height |
| Shipping Weight: | 45.9 lbs. |
| Warranty: | 1 Year Manufacturer's Limited |
| Comments: | For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit so that top edge of towel dispenser opening is 48" (1219) maximum above finished floor (MAX AFF) only if clear floor reach access is provided. |
Architectural Specifications:
Semi-Recessed Automatic Roll Paper Towel Dispenser and Waste Receptacle shall hold and dispense 8" wide [203] x one 8" Dia. [Ø203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" Dia. [Ø102] and shall have a waste capacity of 9.9 gallons (37.3 L). Automatic Touchless Roll Towel Dispenser shall be powered by four (4) D-size batteries (not supplied) and operate automatically to activate towel dispensing when hands are placed in sensor zone from 1/2" [13] below sensor to 4-1/2" [114] below sensor. At each activation unit shall feed out a length of towel selected by owner by setting length, delay and paper saver switches. Unit shall have an internal towel cut-off bar. Towel dispensing opening shall have a fully deburred edge for snag free dispensing and user safety. Full-face door, cabinet, dispenser and waste receptacle shall be type 304 stainless steel alloy 18-8. Cabinet shall be 20 gage with a 1" [25] wide perimeter trim to lay flush against SR-Collar face. Unit back plate for mechanism shall be 18 gage. All exposed surfaces shall have satin finish protected by PVC film easily removable after installation. Door shall be attached to the cabinet body with a full length 3/16" Dia. [Ø4,8] stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Waste container shall have hemmed edges for safety and a finger grip for easy removal. Structural assembly of all components shall be of welded construction.
