ASI 10-1224-36 Shower Curtain Rod w/Concealed Mount Flanges, 1" O.D. Rod, 36" L

(0) No Reviews yet
$74.84
SKU: 10-1224-36

IN STOCK

2 available for immediate shipment

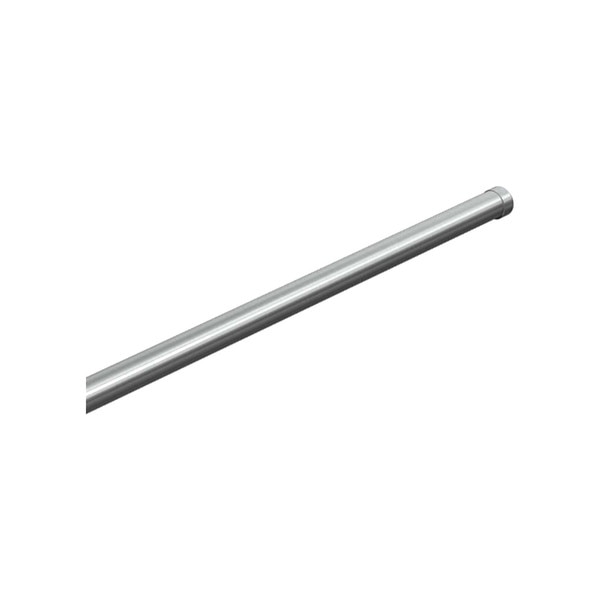

Rod is fabricated of alloy 18-8 stainless steel, type 304, No.20 gauge 1″ dia. tubing. Length as specified.
Concealed Mounting Flanges (Part 1224-1) are chrome plated brass with a satin finish. Pair of flanges consist of a wall mounting lug and a locking sleeve. One sleeve includes locking screw to prevent rod rotation. Mounting lugs provided with (2) mounting holes to accept #10 round or pan head screws (furnished by others).

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72″ (1829mm) require ceiling hanger Model No. 1224-C18. For use with standard shower curtain Model No’s 1200 or 1200-V having 72″ (1829mm) length and standard hooks Model No. 1200-SHU unit should be installed with rod centerline 74-1/2″ (1892mm) AFF or 67″ (1702mm) above tub rim to obtain 6″ (152mm) bottom overlap.

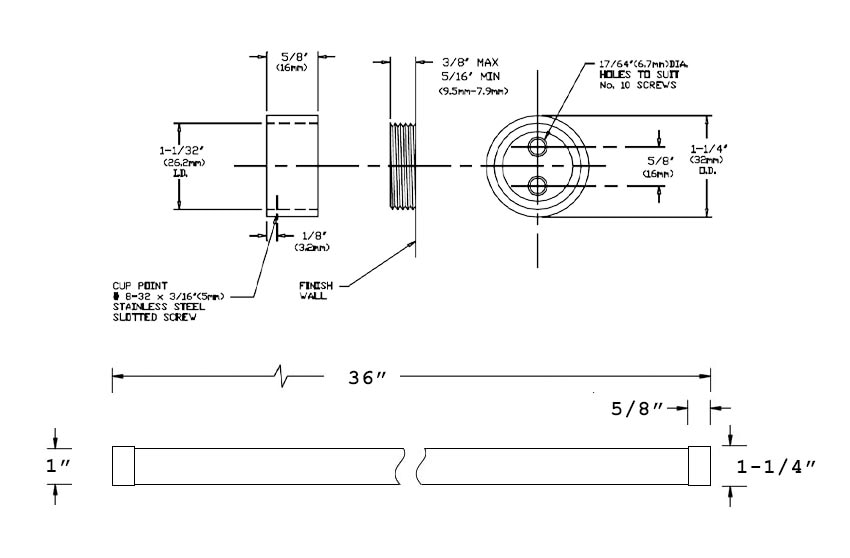

Measurement Diagram:


Alternatives:

To see all of the products in this family, click HERE.




Primary Material: Stainless Steel
Finish / Color: Satin
Installation Type: Wall / Surface
Mount: Concealed
Outside Diameter of Rod: 1"
Overall Dimensions: 36" Wide x 1-1/4" Tall x 1-1/4" Deep
Net Weight: 3.5 lbs.
Shipping Dimensions: 38" Length x 4" Depth x 4" Height
Shipping Weight: 4.5 lbs.
Warranty: 1 Yr. Manufacturer's Limited
Manufacturer Part No.: 10-1224-36

Architectural Specifications:



Shower Curtain Rod with Concealed Mounting Flanges shall have rod fabricated of alloy 18-8 stainless steel, type 304, No20 gauge 1" dia. tubing. Exposed finish shall be satin and shall be protected during shipment with a plastic bag. Length shall be as specified. Concealed Mounting Flanges shall be chrome plated brass with a satin finish. Pair of flanges shall each consist of a wall mounting lug and a locking sleeve. One sleeve shall have locking screw to prevent rod rotation. Mounting lugs shall be provided with (2) mounting holes to accept #10 round or pan head screws (furnished by others).
