ASI (10-0620-1830) Plate Glass Mirror with Stainless Steel, Chan-Lok Frame, 18" W x 30" T

(0) No Reviews yet
SKU: 10-0620-1830

This product will ship from the manufacturer in 2 days.

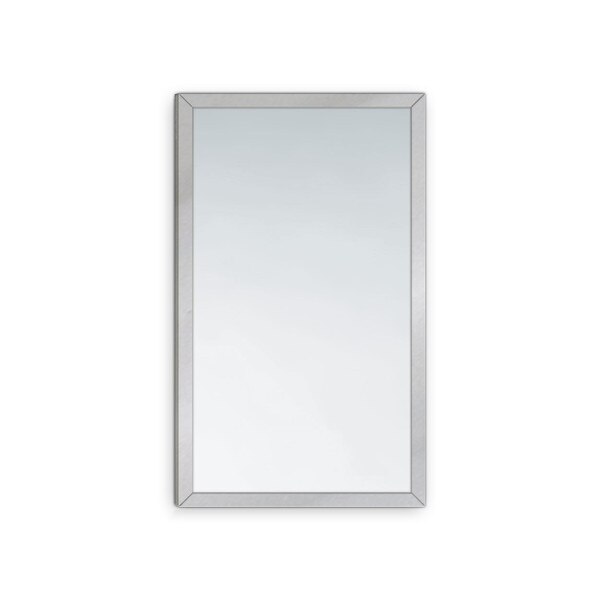

½” x ½” (13 x 13 mm) 20 gauge type 304 satin finish stainless steel channel is a one-piece roll formed member that encases mirror and backing revealing a tight mitered corner. Mirror is installed on two wall brackets and held secure by theft-resistant screws.

0620-1830 – 18” wide x 30” high (457 x 762 mm)

Brand: American Specialties (ASI)
Manufacturer Model No: 10-0620-1830
Mount: Wall / Surface / Flat
Frame Material / Type: Stainless Steel, 20 Gauge, Channel Frame (One piece, rolled)
Glazing: Standard glazing is No 1 quality, 1/4" (6.4mm) thick plate/float glass, silver coated and hermetically sealed with uniform copper plating, and warranted against silver spoilage for 15 years. Mirrors meet Federal Specification DD-M-411C, ASTM C1036-91.
Overall Dimensions: 18" Wide x 30" Tall x 5/8" Deep
Net Weight: 32 lbs.
Shipping DImensions: 34" Length x 22" Width x 4" Height
Shipping Weight: 35 lbs.
UPC / GTIN: Not published
Country of Manufacture: United States
Warranty: 15 Years (Silver Spoilage)
1 Year Defects & Workmanship
Comments: Buy American Act Compliant

Architectural Specifications:


Channel Frame Mirror shall have frame of 20 gauge type 304 stainless steel alloy 18-8, with mitered corners. Mirror glazing shall be _____ (insert glazing option) and shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected by friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. Top and bottom wall mounting brackets shall be 20 gauge corrosion protected steel and shall be spot welded into “H” hanger. Mirror shall be secured to lower bracket with a Phillips Pan Head locking screw.
