  • ASI 10-0600-6036 Mirror, Stainless Steel Inter-Lok Frame, 60" Wide x 36" Tall

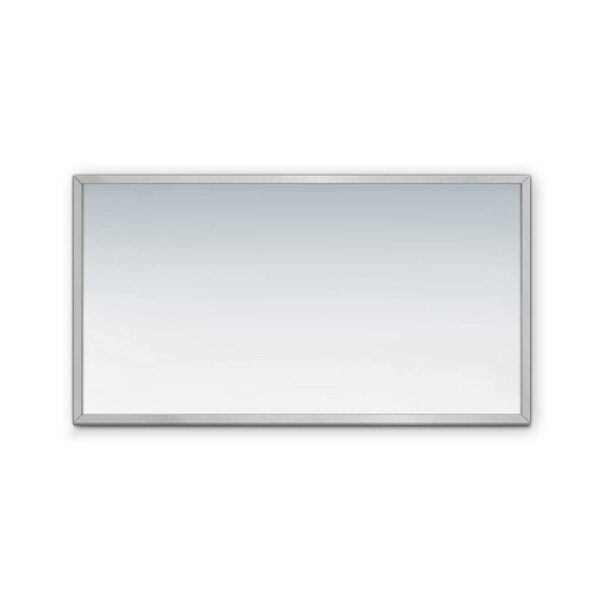

ASI 10-0600-6036 Mirror, Stainless Steel Inter-Lok Frame, 60" Wide x 36" Tall

(0) No Reviews yet
$571.72
SKU: 10-0600-6036

Ships in 2 business days from manufacturer.

This product ships via freight service (on a pallet). To offer the best price, there is a minimum order quantity of 2. If you need only 1, please call us for a quote.

3⁄4″ x 5⁄8″ (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle has corners heliarc welded, ground and polished smooth to a uniform satin finish. Mirror is installed on a concealed hanging bracket that locks onto top and bottom of frame by tamper-proof set screws. Back plate is one piece, attached to frame with theft-resistant locking device.

0600-6036 – 60” wide x 36” high (1524 x 914 mm)


Measurement Diagram:


Brand: ASI
Manufacturer Model No.: 10-0600-6036
Mount: Flat
Frame Material: Satin Stainless Steel
Frame Type: Angle Frame (Inter-Lok)
Glazing: 1/4" Plate Glass
Overall Dimensions: 60" Wide x 36" Tall x 3/4" Deep
Shipping Dimensions: 64" Length x 40" Width x 4" Height
Shipping Weight: 108 lbs.
UPC / GTIN: Not Published
Country of Manufacture: USA
Warranty: 15 Yr. Against Silver Spoilage

Architectural Specifications:



Inter-Lok Stainless Steel Framed Mirror shall have frame fabricated of alloy 18-8 stainless steel, type 304, 18 gauge with mitered corners welded and polished. All exposed surfaces shall be No 4 satin finish. Mirror glazing shall be _____(insert glazing option) and shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected with friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. An 18 gauge corrosion protected steel ‘H’ bracket shall be supplied. Mirror shall be secured to vertical bracket with corrosion protected allen head locking screws furnished.
