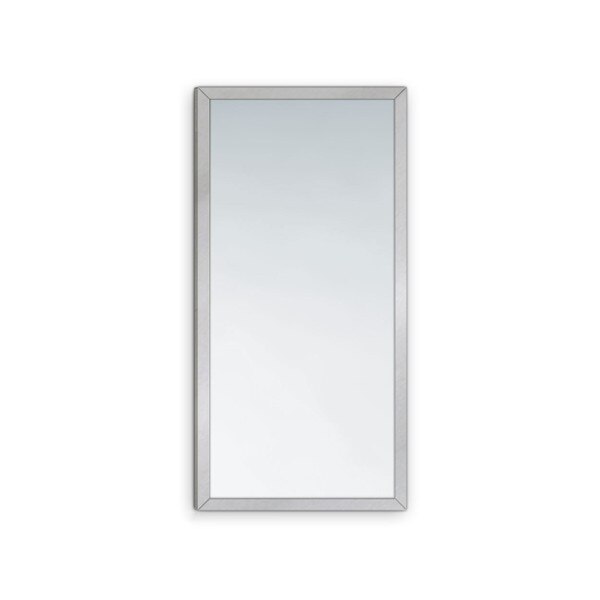

ASI (10-0600-2448) Mirror, Stainless Steel Inter-Lok Frame, 24" Wide x 48" Tall

(0) No Reviews yet
$405.66
SKU: 10-0600-2448

This product will ship from the manufacturer in 7 days.

3⁄4″ x 5⁄8″ (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle has corners heliarc welded, ground and polished smooth to a uniform satin finish. Mirror is installed on a concealed hanging bracket that locks onto top and bottom of frame by tamper-proof set screws. Back plate is one piece, attached to frame with theft-resistant locking device.

0600-2448 – 24” wide x 48” high (610 x 1219 mm)


Brand: American Specialties (ASI)
Manufacturer Model No: 10-0600-2448
Mount: Wall / Surface / Flat
Frame Material / Type: Stainless Steel, 18 Gauge, Angle Frame, Welded Corners
Glazing: Standard glazing is No 1 quality, 1/4" (6.4mm) thick plate/float glass, silver coated and hermetically sealed with uniform copper plating, and warranted against silver spoilage for 15 years. Mirrors meet Federal Specification DD-M-411C, ASTM C1036-91.
Overall Dimensions: 24" Wide x 48" Tall x 3/4" Deep
Net Weight: 54.6 lbs.
Shipping DImensions: 52" Length x 28" Width x 4" Height
Shipping Weight: 57.6 lbs.
UPC / GTIN: Not published
Country of Manufacture: United States
Warranty: 15 Years (Silver Spoilage)
1 Year Defects & Workmanship
Comments: Buy American Act Compliant

Architectural Specifications:



Inter-Lok Stainless Steel Framed Mirror shall have frame fabricated of alloy 18-8 stainless steel, type 304, 18 gauge with mitered corners welded and polished. All exposed surfaces shall be No 4 satin finish. Mirror glazing shall be _____(insert glazing option) and shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected with friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. An 18 gauge corrosion protected steel ‘H’ bracket shall be supplied. Mirror shall be secured to vertical bracket with corrosion protected allen head locking screws furnished.
