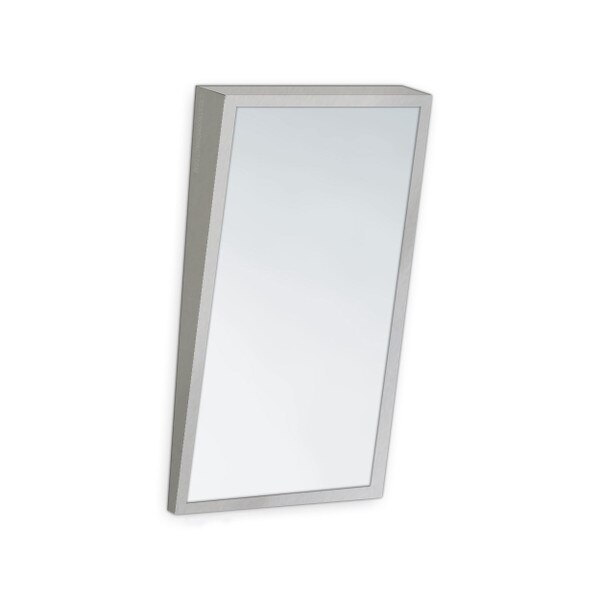

ASI (10-0535-1836) Mirror, Fixed Tilt, Stainless Steel Frame, 18" W x 36" T ( 4"D@Top, 1" D@Bot)
|Top extends 4" away from the wall and gradually decreases down to 1" out at the bottom.|
Offers visibility for wheelchair patients. Frame fabricated of 20 gauge stainless steel with a satin finish. Mirror is tapered from 4″ (102 mm) at top to 1″ (25 mm) at bottom.
> 0535-1836 – 18” wide x 36” high (457 x 914 mm)
|Manufacturer Model No.:||10-0535-1836|
|Frame Material:||Satin Stainless Steel|
|Frame Type:||Angle Frame (Mitred Corners)|
|Glazing:||1/4" Plate Glass|
|Overall Dimensions:||18" Wide x 36" Tall|
4" Deep at Top, 1" Deep at Bottom
|Shipping Dimensions:||40" Length x 22" Width x 6" Height|
|Shipping Weight:||24.6 lbs.|
|UPC / GTIN:||Not Published|
|Country of Manufacture:||USA|
|Warranty:||15 Yr. Against Silver Spoilage|
Fixed Angle Tilted Mirror shall be fabricated of alloy 18-8 stainless steel, type 304, 20 gauge. Face shall be one piece construction free of miters or spot welded seams. All exposed surfaces shall have No 4 satin finish and be protected during shipment by plastic PVC film easily removable after installation. Concealed tamper resistant locking devices shall be provided. Mirror shall be _______(INSERT GLAZING OPTION) and shall be warranted for 15 years against silver spoilage. Mirrors shall be supplied as standard with glazing option ‘ A ´. For a complete description and other choices of glazing options, see the Mirror Glazing OPTIONS Chart.
