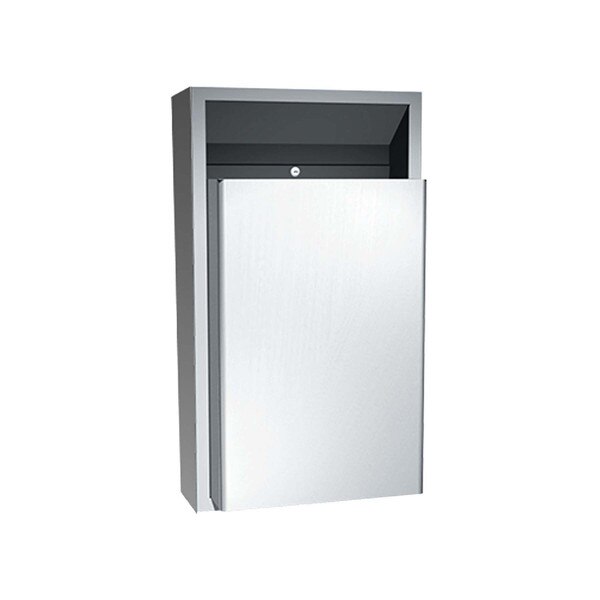

ASI 10-0458-9 Waste Receptacle, Surface Mount, Stainless Steel, 12 Gal. (4" Encl../8" Proj.)
Has a capacity of 12 gal (46 liters). Frame, waste receptacle and cabinet are fabricated of 22 gauge stainless steel alloy 18-8, type 304. Waste receptacle has hemmed edges for safety and internal hooks for hanging a reusable vinyl bag (optional, supplied separately, model 58-PY for 12 gal). A tumbler lock keyed retains waste receptacle. Container locks into cabinet, removable for servicing.
Surface mounted with stainless steel collar.

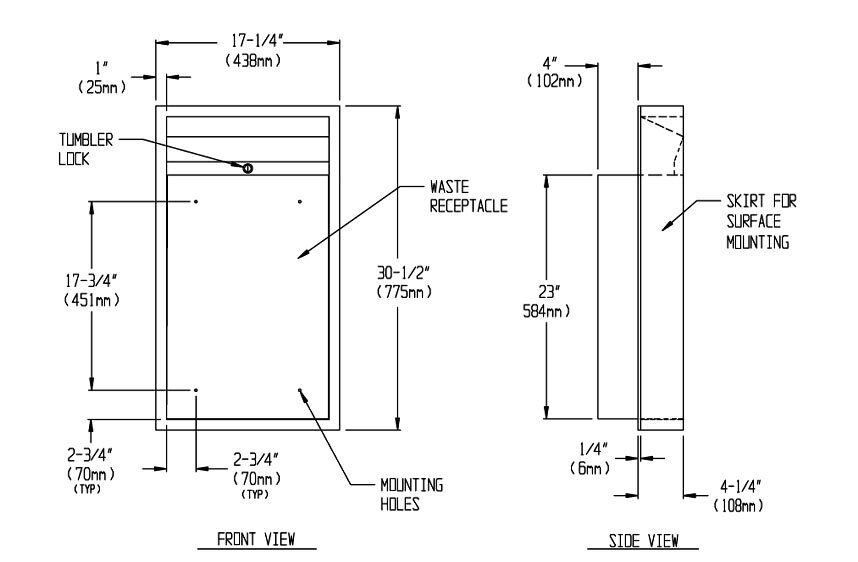

Measurement Diagram:
Alternatives:
To see all of the products in this family, click HERE.
| Primary Material: | Stainless Steel |
| Finish / Color: | Satin |
| Installation Type: | Wall / Surface |
| Capacity: | 12 Gallon Waste Receptacle |
| Overall Dimensions: | 17-1/4" Wide x 30-1/2" Tall x 8" Deep |
| Net Weight: | 25.5 lbs. |
| Shipping Dimensions: | 33" Length x 22" Width x 9-1/4" Height |
| Shipping Weight: | 27.8 lbs. |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Manufacturer Part No.: | 10-0458 |
Architectural Specifications:
Surface Mounted Paper Towel Disposal Unit shall have a waste capacity of 12 gal (46 litres). Frame, waste container and cabinet shall be fabricated of alloy 18-8 stainless steel, type 304, 22 gauge. Waste container shall have hemmed edges for safety and shall be retained by a tumbler lock keyed alike to other ASI washroom equipment. Face trim shall be 1" (25.4mm) wide formed from one piece with no mitres, welding or open seams and have 1/4" (6.35mm) square return to wall. Structural assembly of all components shall be of welded construction. All exposed surfaces shall be No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Unit shall be supplied with SM collar to convert to surface mounting.
