ASI (10-0393-1AC) EZ-Fill Foam Soap Dispenser Head ONLY, AC Powered

(0) No Reviews yet
SKU: 10-0393-1AC


8 available for immediate shipment

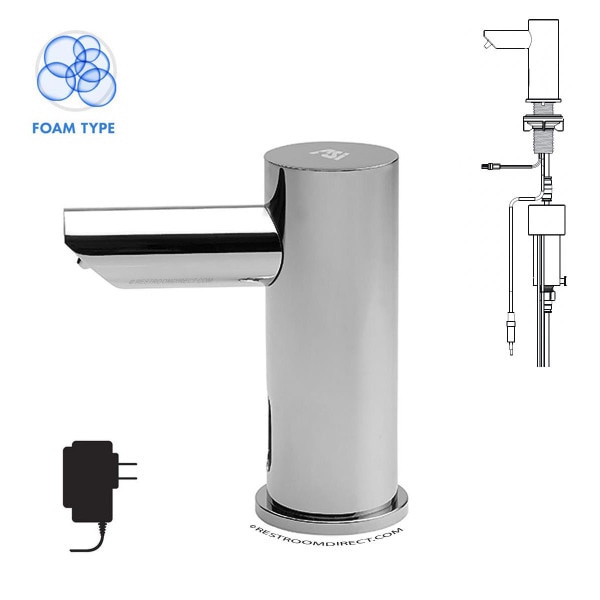

ASI 10-0393-1AC EZ-Fill Top-Fill Foam Dispenser Head. Chrome Plated Individual Dispenser Head. A/C Adapter Plugs into Electrical Outlet. LED Indicator Light. Hands-Free. For use with Foam Soap. Dispenser Heads work with the EZ-Fill Top-Fill Foam Muti-Feed Kit and Container. Expandable up to 6 dispensers. Multi-Feed Kit and 5 liter container sold separately. Top-Fill for easy maintenance. Never go under the counters again to refill soap containers. Easy universal remote control (sold Separately) that make the maintenance of soap dispensing a breeze.

  • Individual Foam Dispenser Head - works with Multi-Feed System

  • A/C Version Plugs into Electrical Outlet

  • System works with up to 6 Dispensers

  • Top fill system - never go below counter to refill foam soap again

Shipping Weight: 0.56 lbs
Manufacturer Model No.: 10-0393-1AC

Architectural Specifications:


EZ FILL™ Vanity Mounted Automatic Soap Dispensing System Foam Soap Dispenser shall dispense liquid foaming soap with pH in range 7± 1.5 and viscosity in range 1–100 cP (mPa•s) and shall dispense in stream cycles with soap volume and air volume adjustable by owner with remote control programming unit (optional, Model № 0390-R; supplied one (1) per six (6) pack). Operation is initiated by hands-free sensor controlled by microprocessor digital circuitry and peristaltic pump is powered by six (6) ‘D’-size 1.5V batteries (supplied by others) in a screw-locked IP67 rated compartment (provided) located under counter or an AC Adapter (also IP67 rated, provided, select model) plugged into GFCI outlet (by others). Unit shall have chrome plated spout and sensor housing with a highly polished finish (or Matte Black when code –41 is specified) over all exposed surfaces. Unit shall have LED in sensor to indicate function and battery condition (when Battery Box, 0390-BP {provided}, is used). A self-adhesive label shall be supplied for use at owner’s option to indicate dispenser function. Unit shall mount on vanity deck up to 2" [51] thick through 1" Dia [Ø25] hole min to 1-1/4" Dia [Ø32] max and shall resist forced rotation up to 177 in-lbf (20 Nm) with 0390-ARK properly installed (provided). NOTE: Soap supply shall be from Model № 0390 EZ FILL™ Vanity Mounted Top-Fill Port and Multi-Feed Tank (supplied separately) with capacity of 1.6 Gal (6 L) of liquid soap containing no abrasives or particulates. Up to six (6) individual EZ FILL™ vanity mounted automatic soap dispenser units shall draw from each Multi-Feed tank located under counter through connection with under-counter soap distribution tubing (provided). Owner’s Manual and Installation Guide (OM & IG) shall be provided with unit in carton.
