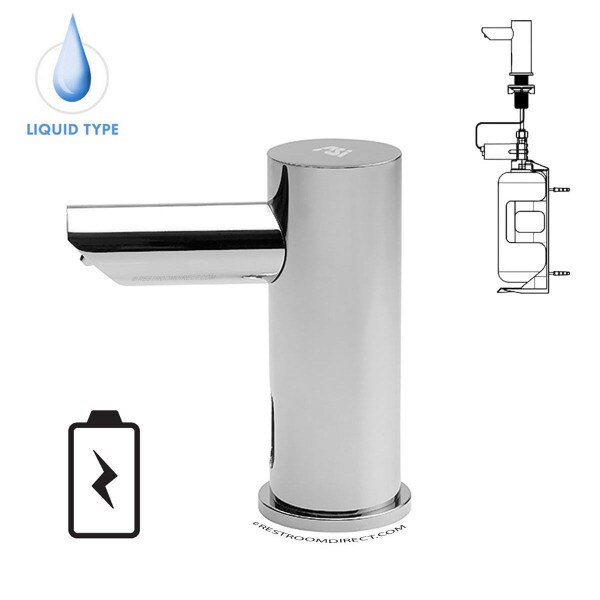

ASI (10-0391-1A) EZ FILL™ Stand-Alone Automatic, Deck Mount Soap Dispenser, Battery Operated
Constructed of chrome plated spout and battery or AC power operated, hands-free sensor housing with a highly polished finish over all surfaces. LED indicates function and battery condition on face front. Translucent tank holds 33.8 oz (1 L) of liquid soap.
0391-1A – EZ Fill™ – STAND-ALONE LIQUID SOAP Dispenser with 1 Liter Bottle – Battery Operated (6 D Cell – not included)
>Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
>Viscosity Range (mPa·s or cP): 100 – 3800
>pH Range: 5.5 ~ 8.5
| Mount: | Counter Top |
| Operation: | Automatic (Hands-Free) Sensor Activated |
| Soap Type: | Clear Liquid, no abrasives Viscosity: 100-3800cP (mPa*s) PH: 5.5-8.5 |
| Capacity: | 1 Liter (33.8 oz) |
| Dispense Amount: | 0.007 oz (0.2 ml) to 0.08 oz (2.3 ml) in four (4) steps |
| Cover / Spout: | Chrome Plated |
| Power: | Battery Operated (6 D-Cell, not included) |
| Overall Dimensions: | Dispenser Head: 4-3/32" Tall x 1-1/2" Wide x 3-5/8" Depth (front to back) |
| Net Weight: | 4.2 lbs. |
| Shipping Dimensions: | 15" Length x 15" Width x 6" Height |
| Shipping Weight: | 5.2 lbs. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Taiwan |
| Warranty: | 1 Year Manufacturer's Limited |
Architectural Specifications:
EZ FILL™ Vanity Mounted Automatic Soap Dispenser shall hold and dispense 33.8 oz (1 L) of liquid soap with pH in range 7± 1.5 and viscosity in range 100–3800 cP (mPa•s) and shall dispense in stream cycles with volumes of approximately 0.007 oz (0,2 ml) to 0.08 oz (2,3 ml) in four (4) steps programmable by owner with remote control programming unit (optional, Model № 0390-R; supplied one (1) per six (6) pack) with factory preset at approximately 0.03 oz (0,8 ml). Operation is initiated by hands-free sensor controlled by microprocessor digital circuitry and peristaltic pump is powered by six (6) ‘D’-size 1.5V batteries (supplied by others) in a screw-locked IP67 rated compartment (provided) located under counter or an AC Adapter (also IP67 rated, provided, select model) plugged into GFCI outlet (by others). Unit shall have chrome plated spout and sensor housing with a highly polished finish (or Matte Black when code –41 is specified) over all exposed surfaces. Unit shall have LED in sensor to indicate function and battery condition (when Battery Box, 0390-BP {provided}, is used). A self-adhesive label shall be supplied for use at owner’s option to indicate dispenser function. Tank shall be translucent to show quantity of soap remaining at any time. Tank shall be disengaged and engaged into pump/control housing under counter by manually unscrewing to allow refilling and threading back up into pump/control housing to retain for operation. Unit shall mount on vanity deck up to 2" [51] thick through 1" Dia [Ø25] hole min to 1-1/4" Dia [Ø32] max and shall resist forced rotation up to 177 in-lbf (20 Nm) with 0390-ARK properly installed (provided). Owner’s Manual and Installation Guide (OM & IG) shall be provided with unit in carton.
