ASI 10-0390 EZ Fill™ Top-Fill, Multi-feed Soap TANK ONLY [for 10-0390-1A, 10-0390-1AC dispensers]

(0) No Reviews yet
$195.70
SKU: 10-0390

IN STOCK

11 available for immediate shipment

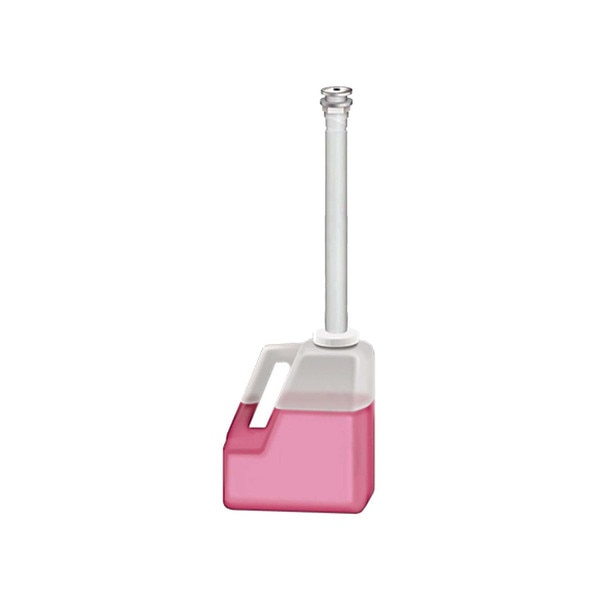

Holds 203 oz (6 L) of liquid soap to supply up to six (6) individual EZ Fill™ vanity mounted automatic soap dispenser units.

Tank is made of translucent plastic to show quantity of soap remaining and is molded without a seam ensuring its leak-proof capability. Tank is located under counter and connected to soap distribution tubing and EZ Fill™ Top-Fill Port via a flexible fiber-reinforced soap fill hose.

IMPORTANT: TANK KIT ONLY, DISPENSERS NOT INCLUDED.

  • EZ Fill™ Top-Fill Port and cover are made of highly polished chrome plated brass (for matte black finish use suffix -41).
  • 6 Liter Container
  • Mounting Bracket for Soap Reservoir
  • Top Fill Tube
  • Counter Fill Port with Cover


Mount: Under Counter
Operation: Multifeed cap accomodates feed hoses from soap dispenser heads (up to 6)
Soap Type: Clear Liquid, no abrasives
Viscosity: 100-3800cP (mPa*s)
PH: 5.5-8.5
Capacity: 6 Liters (1.6 Gallons)
Primary Material: ABS Translucent Plastic
Rough-In: 1-5/16" Diameter Hole
Included: Soap Tank, Counter-top Port with locking plug, Mounting Bracket, Fill Hose
Comments: Accomodates up to 2" max thick counter material

Architectural Specifications:

EZ Fill™ Vanity Mounted Top-Fill Port with Multi-Feed Tank for EZ Fill™ Vanity Mounted Automatic Soap Dispensing System shall hold 1.6 Gal (6 L) of liquid soap with pH in range 7 ± 1.5 and viscosity in range 100-3800 cP (mPa∙s) or liquid foaming soap with pH in range 7 ± 1.5 and maximum viscosity of 100 cP (mPa∙s) and without abrasive or particulate content to supply up to six (6) individual EZ FILL™ vanity mounted automatic soap dispenser units (see 0390-(n) or 0393-(n) technical data sheets for details). Multi-Feed tank shall be leak-proof seamless molded translucent plastic to show quantity of soap remaining at any time and will be located under counter, either on floor of base cabinet or in wall mounting bracket (provided). Tank shall be connected to under-counter soap distribution tubing (provided with separately specified soap dispensers) and EZ FILL™ Top-Fill Port flexible fiber-reinforced soap fill hose (provided) with single coupling. Unused soap distribution ports shall be closed with blanking fittings (provided). EZ FILL™ Top-Fill Port and cover shall have highly polished chrome plated finish over all exposed surfaces and flange shall have an O-ring to seal against vanity top surface to prevent liquid leaks through counter top. Tank shall be filled by opening fill port cover with service wrench (provided) and loading bulk soap. Concealed air vent hole and vent tube with clip shall allow pumps (supplied separately) to provide smooth soap delivery performance. EZ FILL™ Top-Fill Port shall mount on vanity through 1-9/32" Dia [Ø32,5] hole min to 1-3/8" Dia [Ø35] max and shall accommodate vanity thickness up to 2" [51]. Owner’s Manual and Installation Guide (OM & IG) shall be provided with unit in carton.
