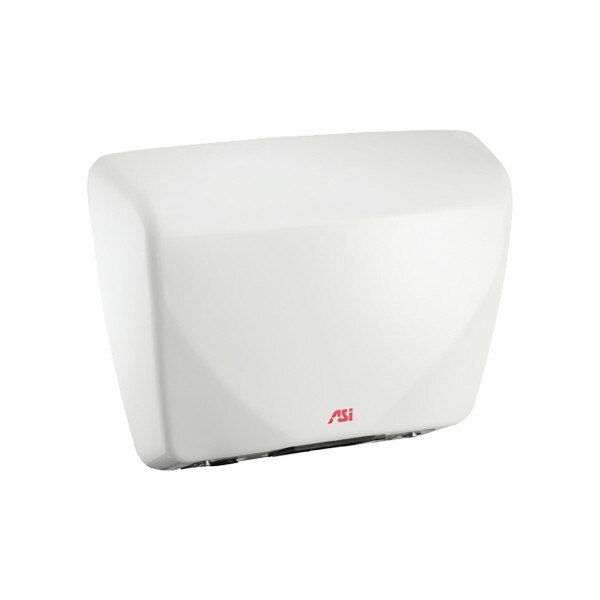

ASI (10-0195) ROVAL Surface Mount, Automatic Hand Dryer, White Cast Iron, Universal Voltage
This heavy duty, vandal resistant, slim profile hand dryer is ADA compliant (when surface mounted) and has a sleek modern cover design.
Indestructable heavy duty cast iron cover
Quiet operation (63dB)
10 Year manufacturer's limited warranty
ADA Compliant without need for recessing (surface mount)
Universal voltage support (works with 110-120V, 208V or 220-240V)
Certifications:

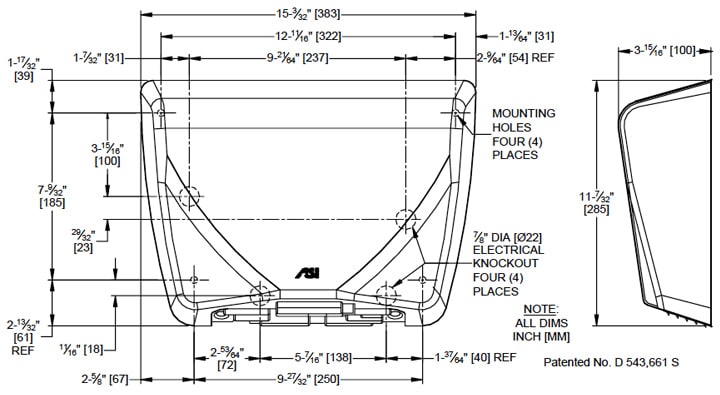

Measurement Diagram:
| Reported Dry Time: | 25 Seconds |
| Mount: | Wall / Surface |
| Cover: | One piece heavy-duty cast iron (1/4" thick) |
| Nozzle: | Fixed directional outlet grill |
| Activation: | Automatic (infra-red) hands-free (self calibrating) |
| Power: | 2200 Watts, 100-240V (9.6 to 19.1A), 50/60Hz |
| Motor: | Brush type, dual ball bearings |
| Fan: | Single Inlet Centrifugal |
| Airspeed: | 185 CFM |
| Reported Sound Level: | 63 dB |
| Heating Element: | 2020W Nichrome wire with auto reset circuit breaker |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 10-3/4" Tall x 14-1/2" Wide x 4" Deep |
| Product Weight: | 25 lbs. |
| Shipping Dimensions: | 16-3/4" Length x 12-3/4" Width x 8" Height |
| Shipping Weight: | 26.5 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer's Part No.: | 10-0195 |
| Country of Manufacture: | Taiwan |
Architectural Specifications:
Surface Mounted Sensor Hand Dryer With Cast Iron Cover shall operate automatically from IR sensor that shall activate dryer when hands are placed in sensor zone. Motor and heating element shall have internal resetting automatic thermal protection. Cover shall be fabricated of one-piece, heavy-duty cast iron 1/4" [6,4] thick, and shall have all exposed surfaces finished with acid, chip and scratch resistant porcelain enamel. Fixed directional air vanes shall be heavy duty, rust proof and tamper resistant. Air intake slots shall not allow access to internal parts. Back plate shall be furnished with vibration isolating mounting bushings. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self calibrate to provide uniform sensitivity over its entire life span. Entire unite shall be internally electrically grounded. Dryer unit shall have C-UL-US® approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Unit shall be warranted against defects in materials or workmanship for ten (10) years.
