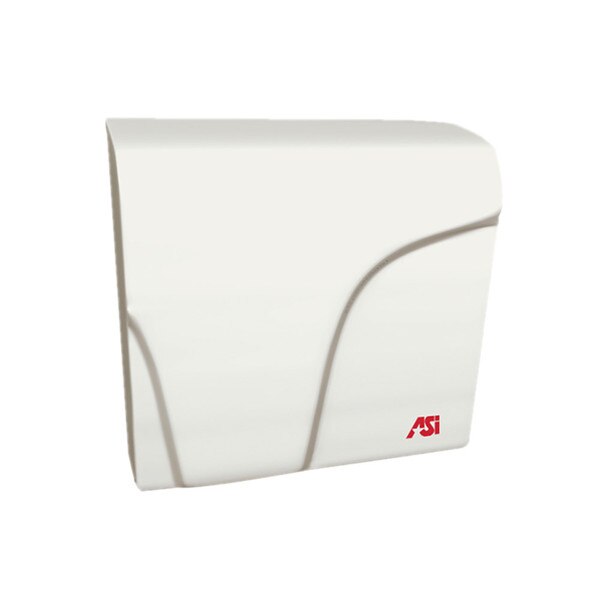

ASI (10-0165) Profile™ Compact Dryer, White, Automatic (Hands Free)
This value oriented, slim and sturdy profile hand dryer is ADA compliant and surface mount.
Universal voltage (110-240V)
Quiet operation (62 dB)
10 year warranty
Durable die cast aluminum construction with epoxy paint finish
ADA compliant without recessing
Certifications:

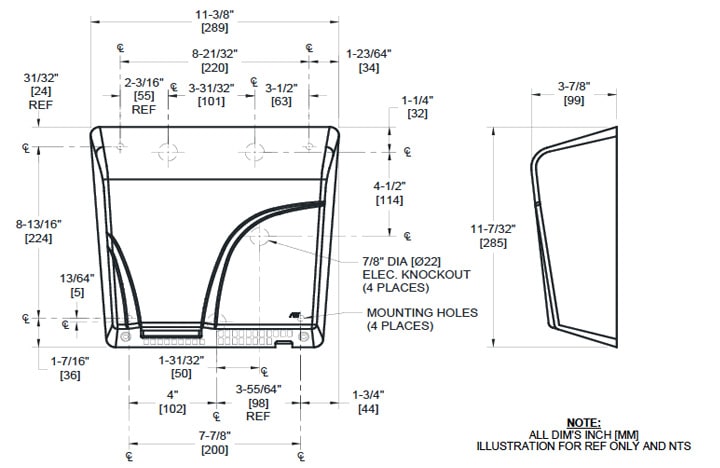

Measurement Diagram:
| Reported Dry Time: | 28 Seconds |
| Mount: | Wall / Surface |
| Cover: | Die cast aluminum, epoxy enamel finish |
| Nozzle: | Fixed directional vent |
| Activation: | Automatic (IR Sensor) |
| Power: | 1653-1800 Watts, Universal Voltage, 110-240V (7.5 to 14.4A), 50/60Hz |
| Motor: | Brush type, dual ball bearings |
| Fan: | Single inlet centrifugal |
| Airspeed: | 180 CFM |
| Reported Sound Level: | 62 dB |
| Heating Element: | Nicrhome wire with auto reset breaker (1488-1620 Watts) |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 11-1/4" Tall x 11-3/8" Wide x 3-7/8" Deep |
| Product Weight: | 10 lbs. |
| Shipping Dimensions: | 12-1/4" Length x 12" Width x 5" Height |
| Shipping Weight: | 11 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer's Part No.: | 10-0165 |
| Country of Manufacture: | Taiwan |
Architectural Specifications:
Surface Mounted Hand Dryer shall operate automatically from IR sensor that shall activate dryer when hands are placed in sensor zone. Motor and heating element shall have internal resetting automatic thermal protection. Cover shall be fabricated of one-piece, heavy-duty cast aluminum 7/64" [2,6] thick, and shall have all exposed surfaces finished with acid, chip and scratch resistant epoxy enamel. Fixed directional air vanes shall be heavy duty, rust proof and tamper resistant. Air intake slots shall not allow access to internal parts. Back plate shall be furnished with vibration isolating mounting bushings. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self-calibrate to provide uniform sensitivity over its entire life span. Entire unit shall be internally electrically grounded. Dryer unit shall have C-UL-US® approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Unit shall be warranted against defects in materials or workmanship for ten (10) years.
